How are Magnetic Latching Relays used in modern industrial automation systems?

What is a Magnetic Latching Relay?

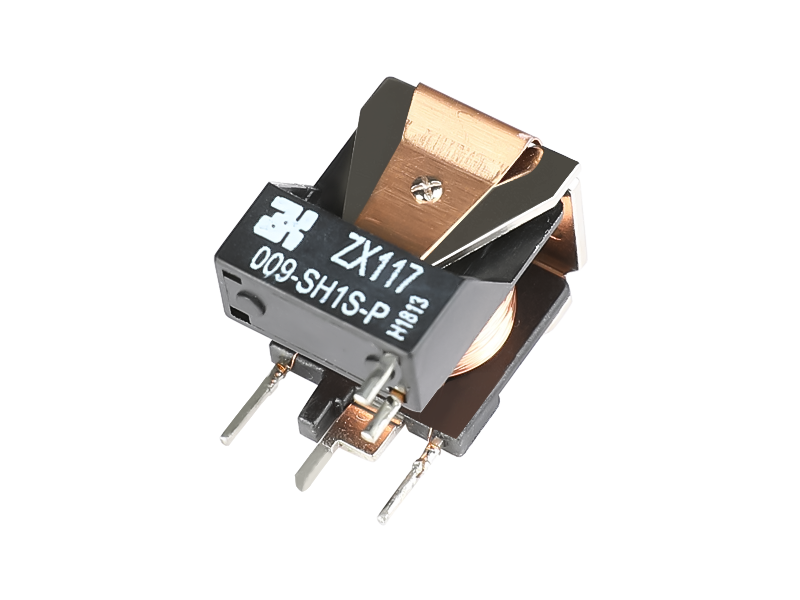

A magnetic latching relay is a type of relay that uses a magnetic field to maintain its position. It consists of a coil, a magnetic core, and a set of contacts. When current flows through the coil, a magnetic field is generated, which causes the magnetic core to move and change the position of the contacts. The relay remains in this position even after the current is removed, until an opposite polarity pulse is applied to the coil to reset the position.

How are Magnetic Latching Relays used in Industrial Automation?

Magnetic latching relays are widely used in industrial automation systems for a variety of applications. Some common examples include:

1. Energy management systems: Magnetic latching relays are used to control the flow of energy between different sources and loads. They are ideal for use in systems where power needs to be switched between sources quickly and efficiently.

2. Motor control: Magnetic latching relays are often used to control the speed and direction of motors. They are particularly useful in applications where space is limited, as they can be designed to take up very little space.

3. Lighting control: Magnetic latching relays are used in lighting control systems to switch lights on and off. They are particularly useful in systems where multiple switches control the same lights, as they can be used to maintain the position of the switch, regardless of the position of other switches.

What are the advantages of using Magnetic Latching Relays in Industrial Automation?

There are several advantages to using magnetic latching relays in industrial automation systems, including:

1. Reduced power consumption: Magnetic latching relays require power only during the switching process, which can result in significant energy savings.

2. High reliability: Magnetic latching relays are highly reliable, as they are not affected by vibrations or shocks. They are also less likely to fail due to contact welding or arcing.

3. Space-saving: Magnetic latching relays are compact and can be designed to take up very little space. This makes them ideal for use in applications where space is at a premium.

4. Easy to use: Magnetic latching relays are easy to use and can be operated by a simple electrical pulse. They are also easy to install and maintain.
