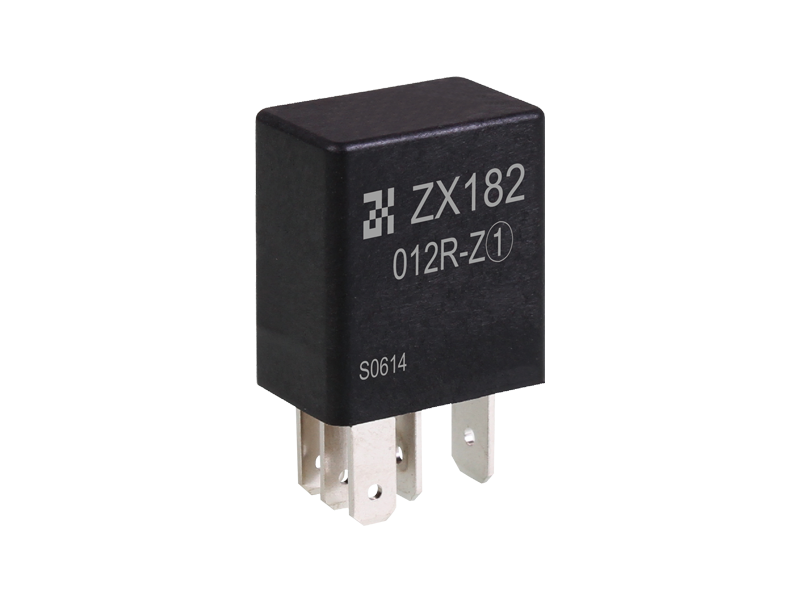

40A Continuous Current Capacity Power Protection ZX182 Automotive Relays

40A Continuous Current Capacity Power Protection ZX182 Automotive Relays

Main Features

Micro size plug-in design

40A continuous current capacity

Dust cover and sealed version available for rough environment protection

Available in PCB termination



Typical automotive Applications

Blower motor control                                Stationary heating

Ventilation motor                                     Head lights,full beam/dimmed

Compressor control system                    Fog lamp

Radiator cooling fan

Contact us PDF Download
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage max Must Release Voltage min. With Resistor
    A,B C A,B C
    006 6 32 25 1.2（A,B）
    1.5(C)    		 3.6
    7.2
    14.4    		 10.4 9.2 0.6 170
    012 12 123 97 20.4 18.1 1.2 680
    024 24 483 384 40.4 36.0 2.4 2720
    Contact Data
    Material
    AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance
    50mΩ, max. at 0.1A, 6VDC
    Contact Form
    1 Form A
    1 Form B
    1 Form C
    NO
    		 NC
    Max.Switching Current Make
    90A
    45A
    90A
    		 45A
    Break
    40A
    30A
    40A
    30A
    Max.Continuous Current
    40A
    30A
    40A
    		 30A
    Max.Switching Voltage
    Current dependent(See curve)
    Min.Load

    AgNi0.15:0.1A/12VDC; AgSnOlnO:0.5A/12VDC
    Sevice Life  Mechanical
    1×107ops.
    Electrical
    2×10 5 ops. See Note 4
    Characteristics
    Operate/Release Time 9ms. typical/7ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 20g, 11ms
    Vibration Resistance 10-40Hz:DA1.27mm, 40-70Hz:5g
    70-100Hz:DA0.5mm, 100-500Hz:10g
    Ambient Temperature Operating：-40℃ to 125℃
    Storage：-40℃ to 155℃
    Weight Plng-in：Approx 21g
    PCB：Approx 19g
    Drop Resistance Drop Resistance 1M height drop on concrete

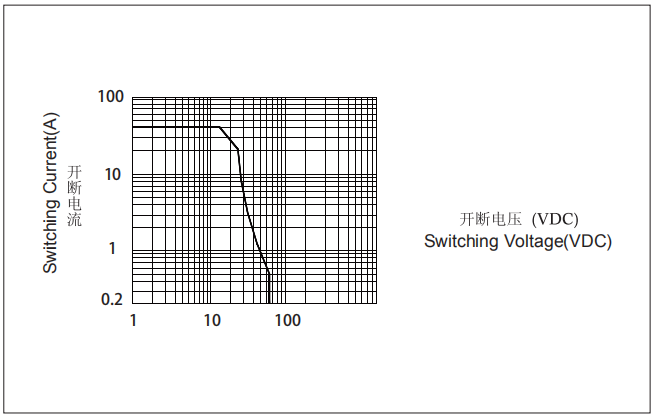

    Referencd Curve

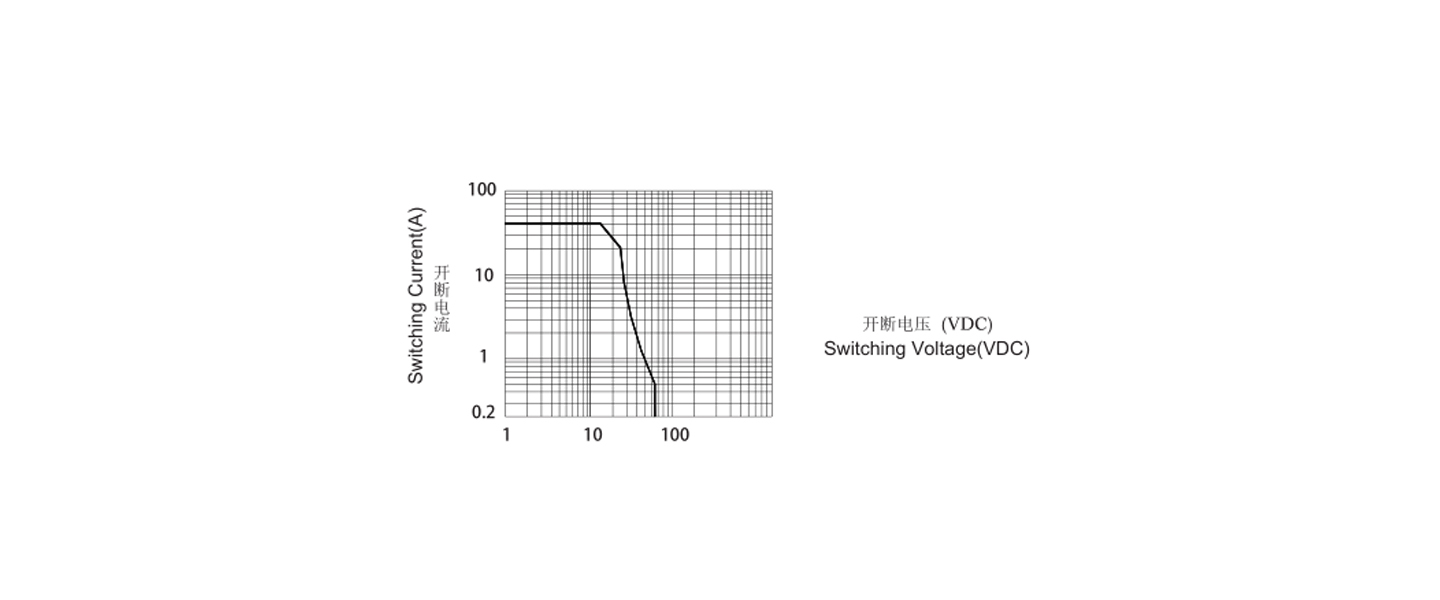

  • Referencd Curve

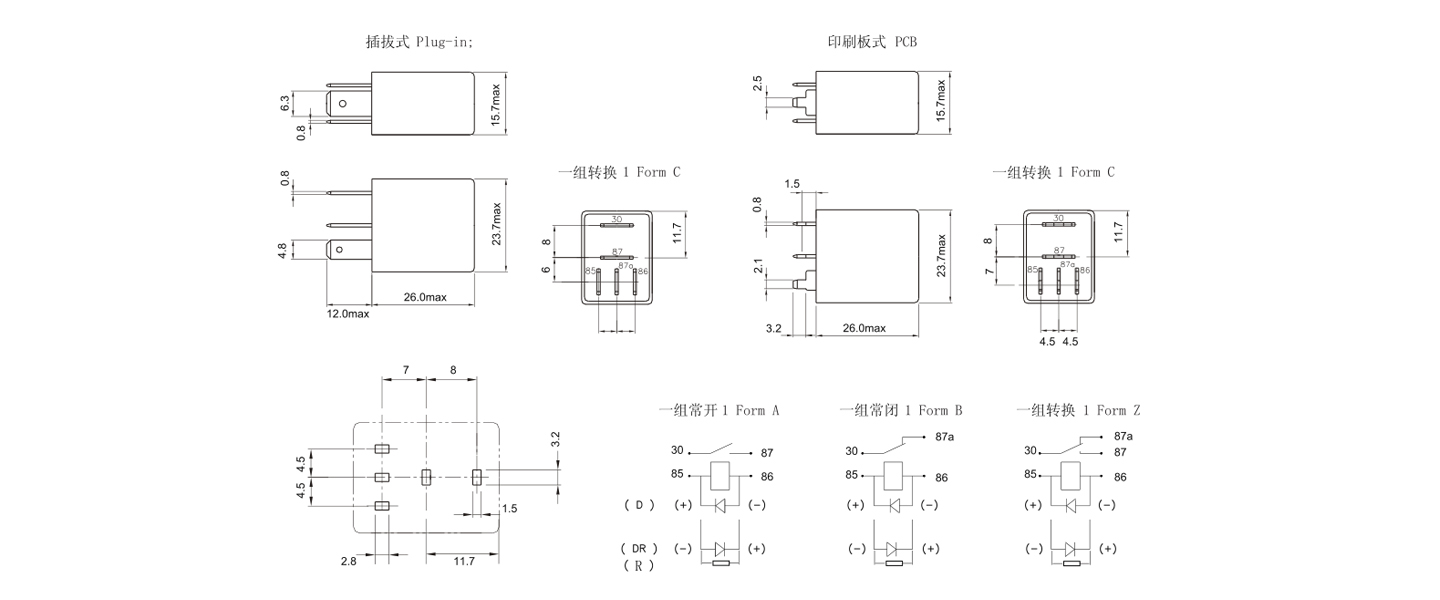

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.At ambient temperature of 85℃,Maximum allowable voltage should be reduced to 72%.

    4.Electrical life obtained at resistive or inductive load at 40A,15VDC with suitable arc-suppression circuit attached with operating frequency of 1 ops/sec.

    5.Equivalence:Tyco Micro A, P&B VFM

Product description

The ZX182 automotive relay is equipped with 40A continuous current capacity to help reduce current fluctuations and instability in electrical systems. Relays with high current capacity usually have better thermal stability and electrical performance, and can maintain normal operation in high temperatures or harsh environments. This helps reduce safety hazards caused by electrical faults and improves the overall safety of the car. 40A Continuous Current Capacity Power Protection ZX182 Automotive Relays uses a miniature plug-in design to provide more flexibility for the layout of the automotive internal electrical system, helping to save valuable space resources. The miniaturized design reduces the weight of the relay, helping to reduce the overall weight of the car, thereby reducing fuel consumption and carbon emissions, and improving the car's energy efficiency and environmental performance.
