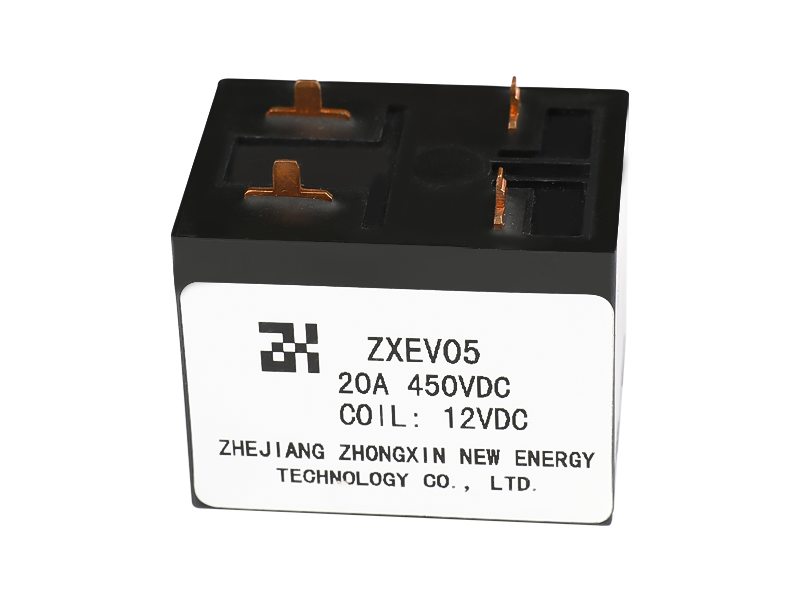

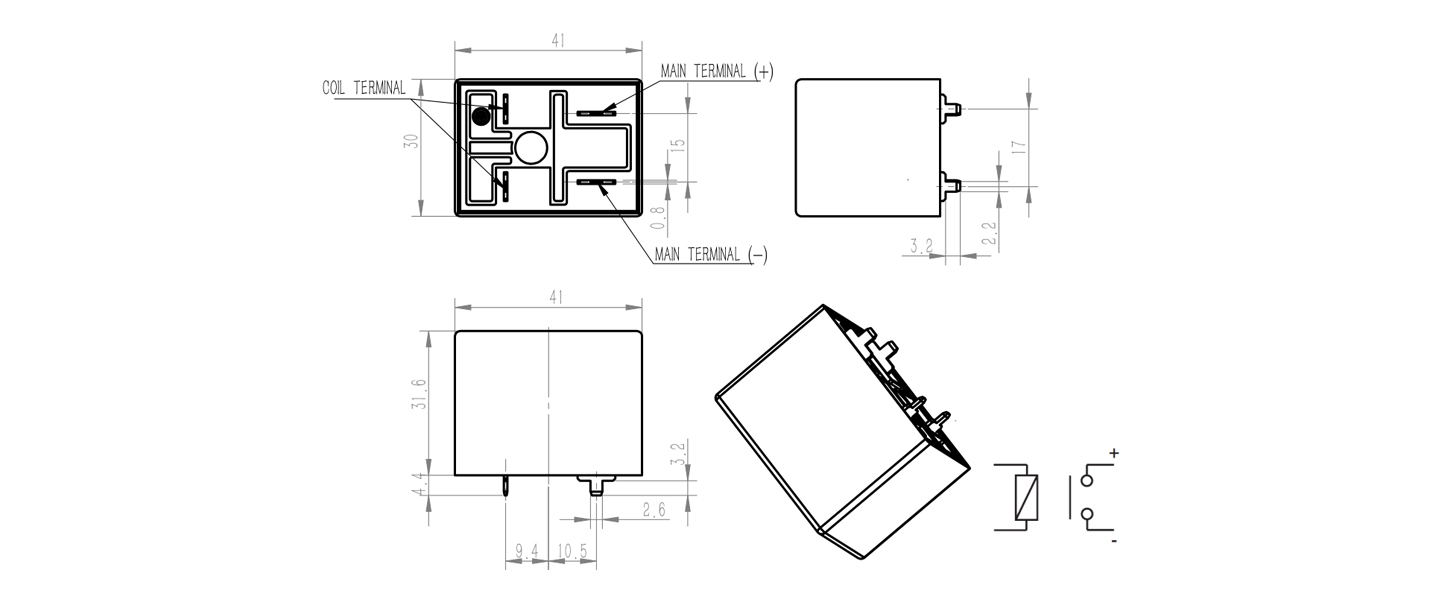

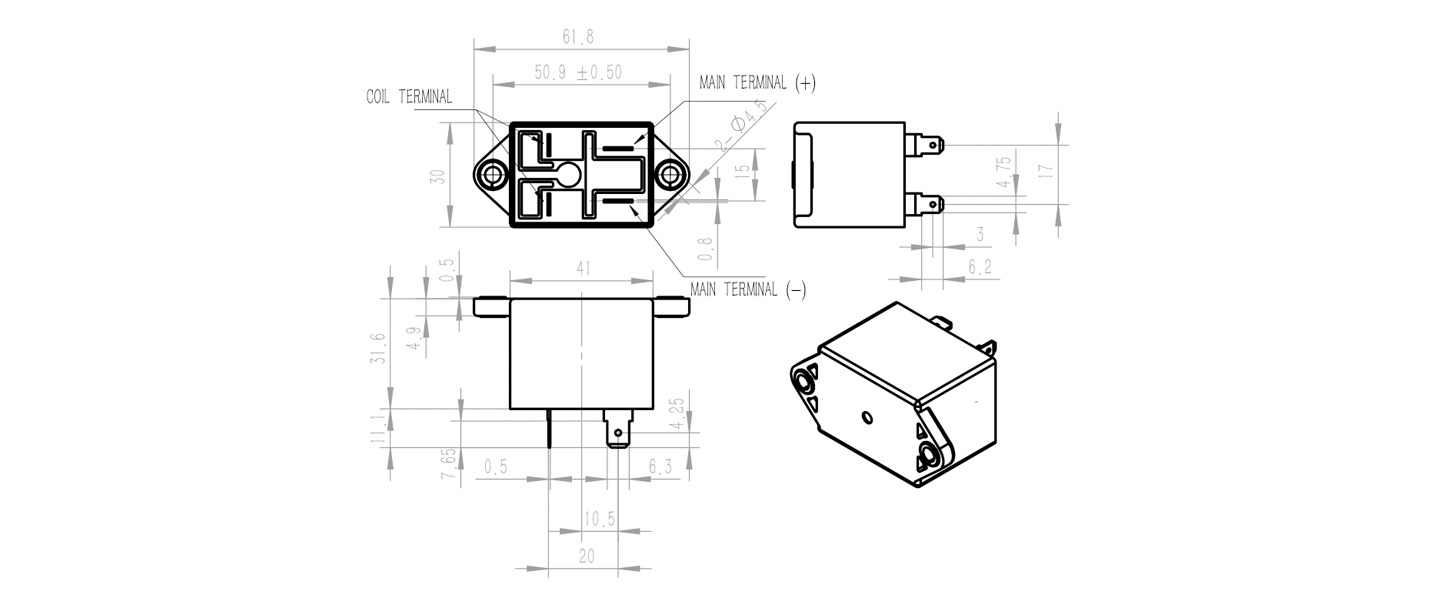

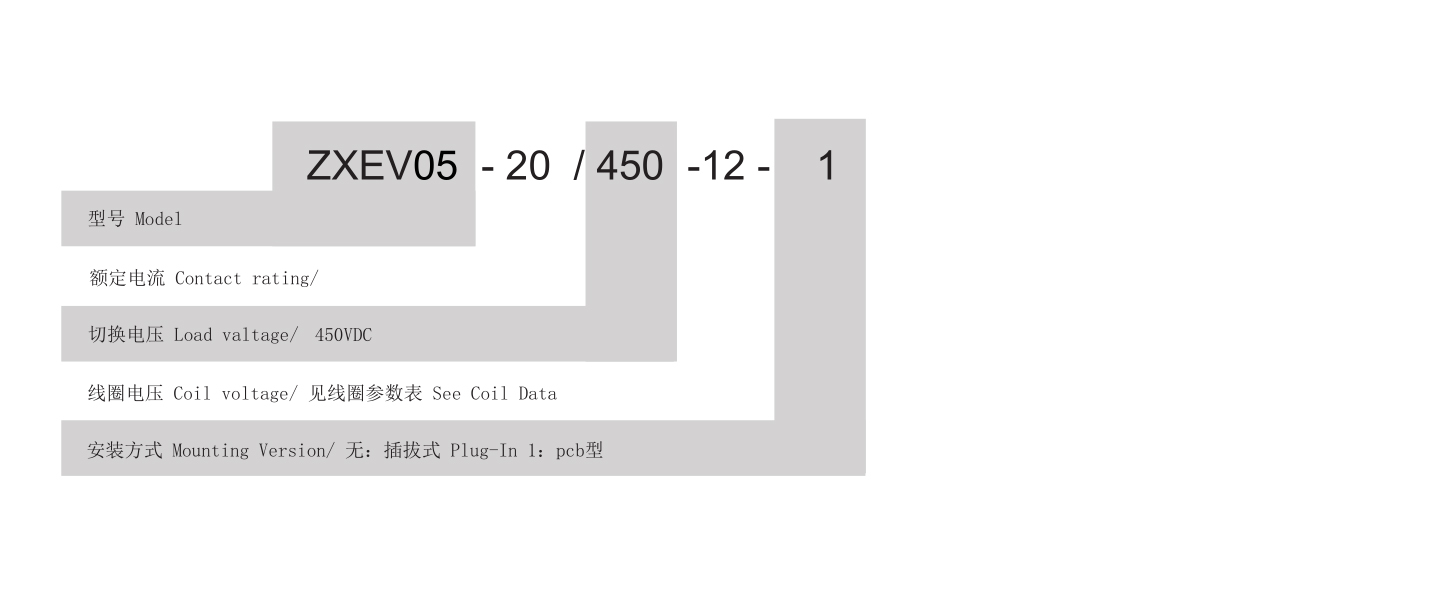

ZXEV05-20A Medium Pressure 450VDC Automotive DC Contactor Relays

ZXEV05-20A Medium Pressure 450VDC Automotive DC Contactor Relays

Main Features

20A continuous current capacity

Direct current relay

Fully standardized quick connect size and layout

Plastic cover for rough environment protection



Typical automotive Applications

Electric vehicle pre-charging

Contact us PDF Download
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    012 12 90 1.6 9 18.0 1
    024 24 360 18 35 2
    Contact Data
    Material   AgSnO₂
    Initial Contact Resistance   10mΩ at 20A
    Contact Form   1 Form A
    Max.Continuous Current   20A (PCB 25A)
    Min.Load   1A/12VDC
    Sevice Life Mechanical 1×10 6 ops.

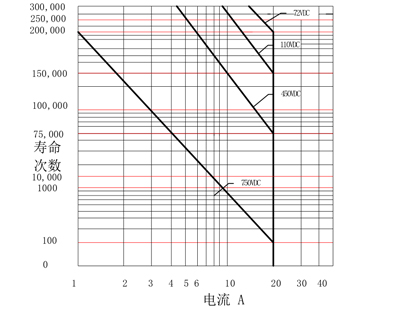

    Electrical 1.5×105ops. 10A 450VDC 7.5×104ops. 20A 450VDC 2×105ops. 20A 72VDC
    Characteristics
    Dielectric strength Coil to contact 3000VAC 1min
    Across open contact 2500VAC 1min
    Operate/Release Time 30ms. typical/10ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 20g, 11ms
    Vibration Resistance 10-40Hz:DA1.27mm,40-70Hz:5g
    70-100Hz: DA0.5mm, 100-500Hz:5g
    Ambient Temperature Operating：-40℃ to 85℃
    Storage：-40℃ to 125℃
    Weight Approx 60g

  •



  • 1. The above parameters are subject to room temperature of 23 degrees unless otherwise specified.
    2. The maximum on-current refers to the surge current on the lamp.
    3. When the ambient temperature is 85 degrees, the maximum allowable voltage should be reduced to 72% of the original value.

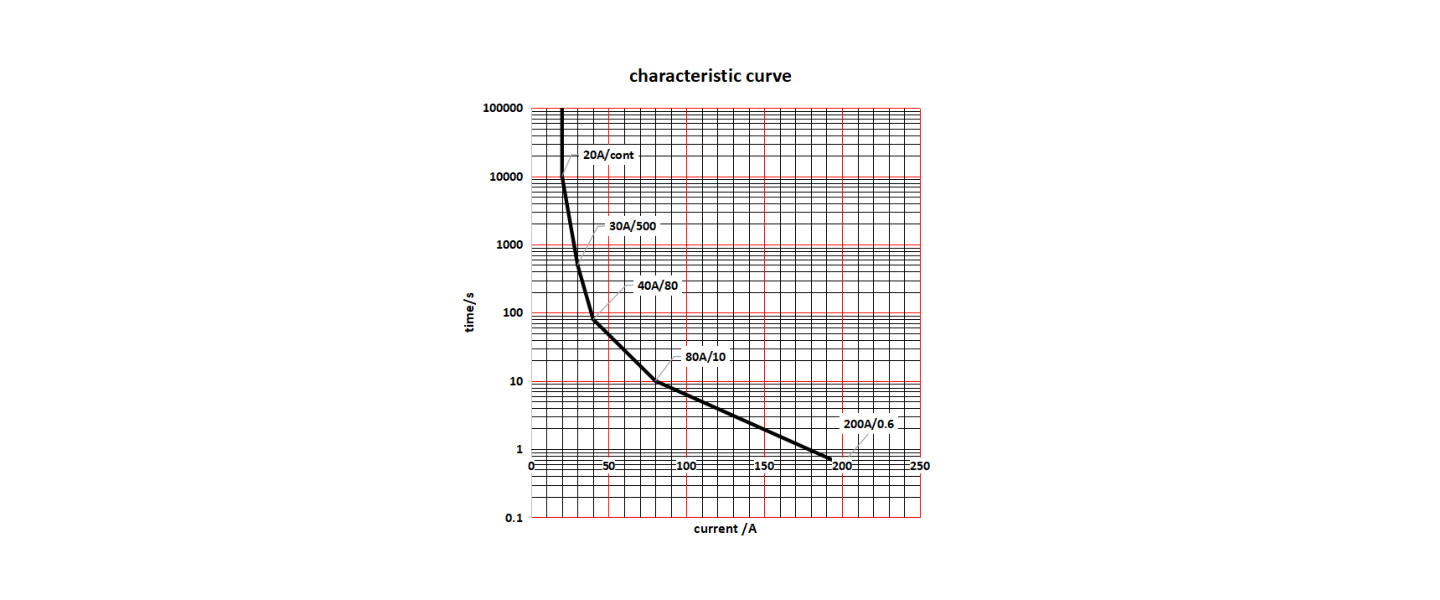

    4. The current time curve data is measured at the ambient temperature of 85 ° C, and the cross section of the wire is ≥4mm²
