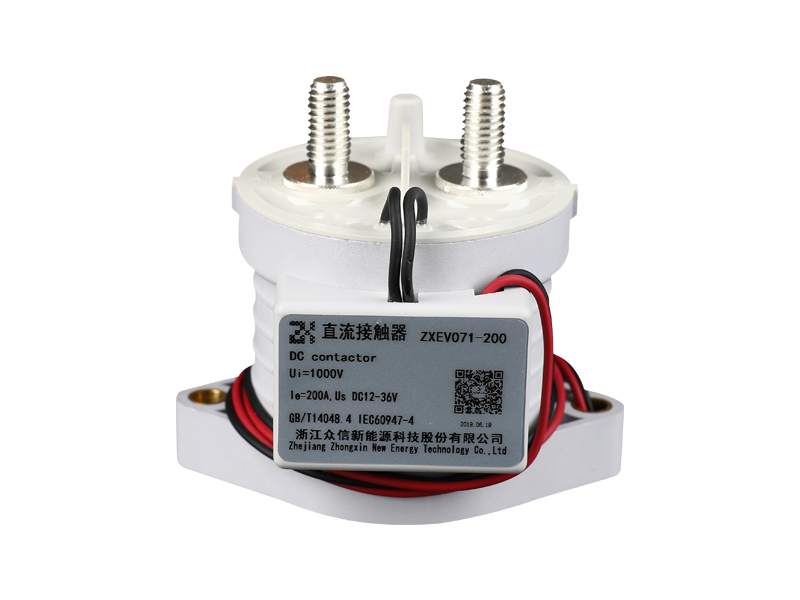

ZXEV071-200A Non-polar epoxy package 450VDC High Voltage DC Contactor

1. Small and lightweight:Internally adopt reliable sealing technology and filled with nitrogen which arc colling ability is high. It can cut off high voltage DC in a short time.

2. High contact reliability:Due to the contact sealed in the nitrogen, therefore it will be not oxidized, also achieving the contact of the dustproof and waterproof.

3. Safety and reliable:Use the professional explosion-proof structure design,to achieve a high degree of security,adopt magnetic quenching helps to cut-off the DC load quickly.

4. Application:DC charging pile, electric vehicles, hybrid vehicles, battery charging and discharging system,Photovoltaic power generation system such as dc high voltage application.

Contact us PDF Download
  • Contact Data
    Contact load(FLA)
    200A/450VDC
    Contact form
    1H
    Voltage drop
    50mV Max
    Limited of current
    600A/1s、480A/60s、320A/600s
    Max switching current
    2000A,320VDC(1 Times)
    Max switching voltage
    900VDC
    Max switching power
    640KW
    Electric endurance
    200A/450VDC-7000 Times(Resistive load)
    200A/750VDC-2000 Times(Resistive load)
    Mechanical endurance

    1x106ops

    Auxiliary switch

    0.5A@30VDC/1A@125VAC

    Coil Data
    Insulation resistance (Ω±10%)@23℃
    Nominal coil voltage
    Min operating voltage
    Max operating voltage
    Single coil resistance
    Release voltage
    Coil power
    consumption
    12-36VDC
    ≤12VDC
    36VDC
    3.2Ω
    ≥2VDC
    When connected 40W(0.1s),
    When holding:4W
    Characteristics
    Insulation resistance 1,000MΩ(at 500VDC)
    Dielectric strength Coil to contact 3500VAC 1 min
    Across open contact  3500VAC 1 min
    Operate time ≤50ms
    Release time ≤30ms
    Shock resistance functional 196m/s² 20G above
    Shock resistance destructive 490m/s² 50G above
    Ambient temperature -40~85℃
    Humidity 5~85%RH
    Virbration resistance 10-200HZ,49m/s²
    Terminal M8 External thread
    Unit weight 420g
    Package Epoxy encapsulation

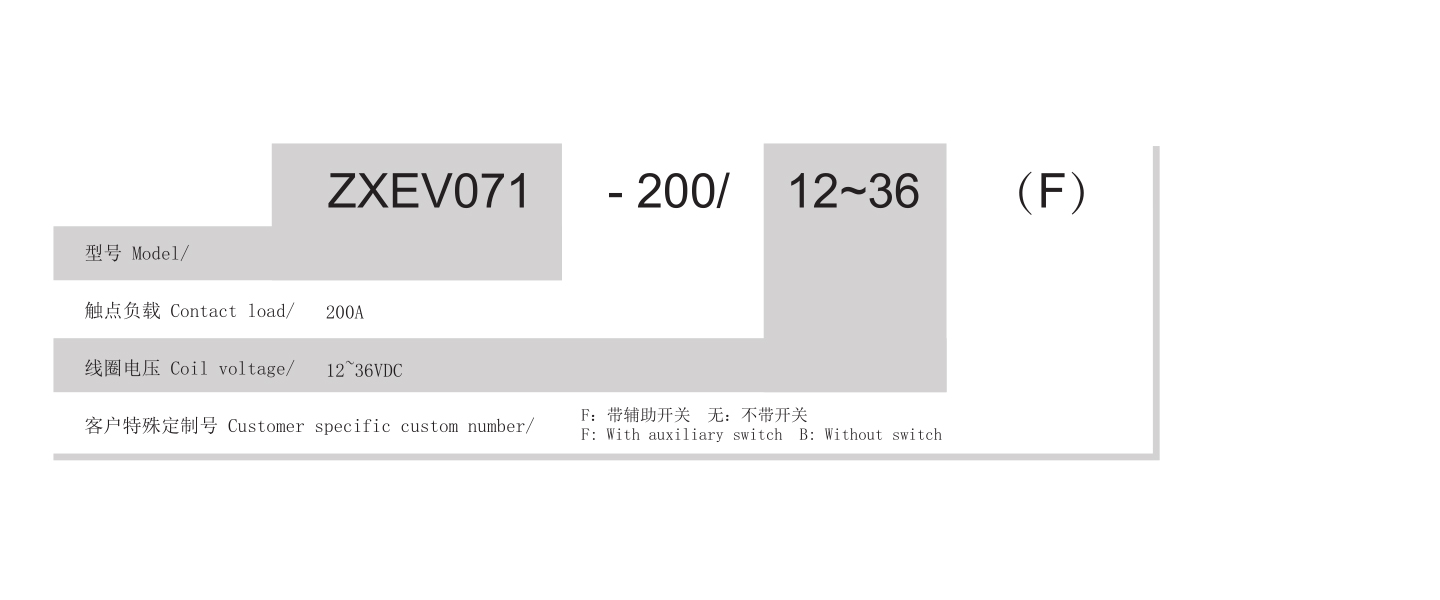

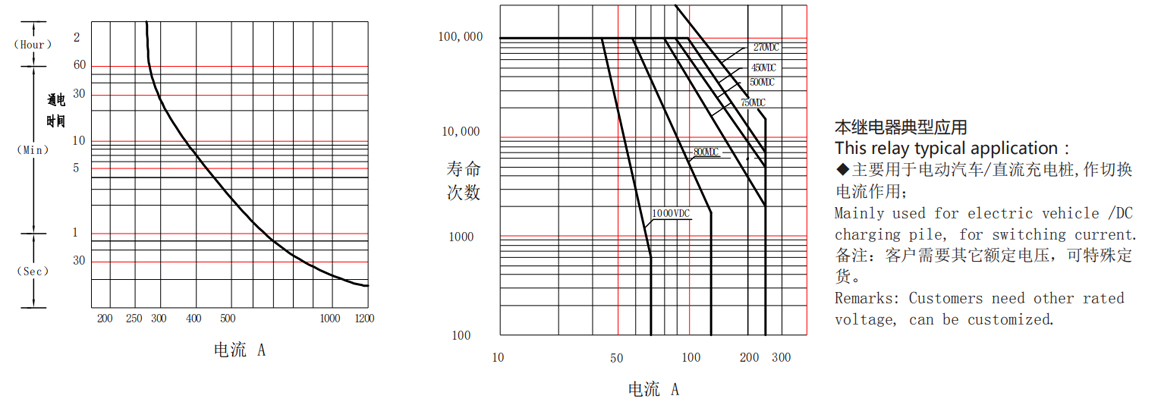

    Referencd Curve

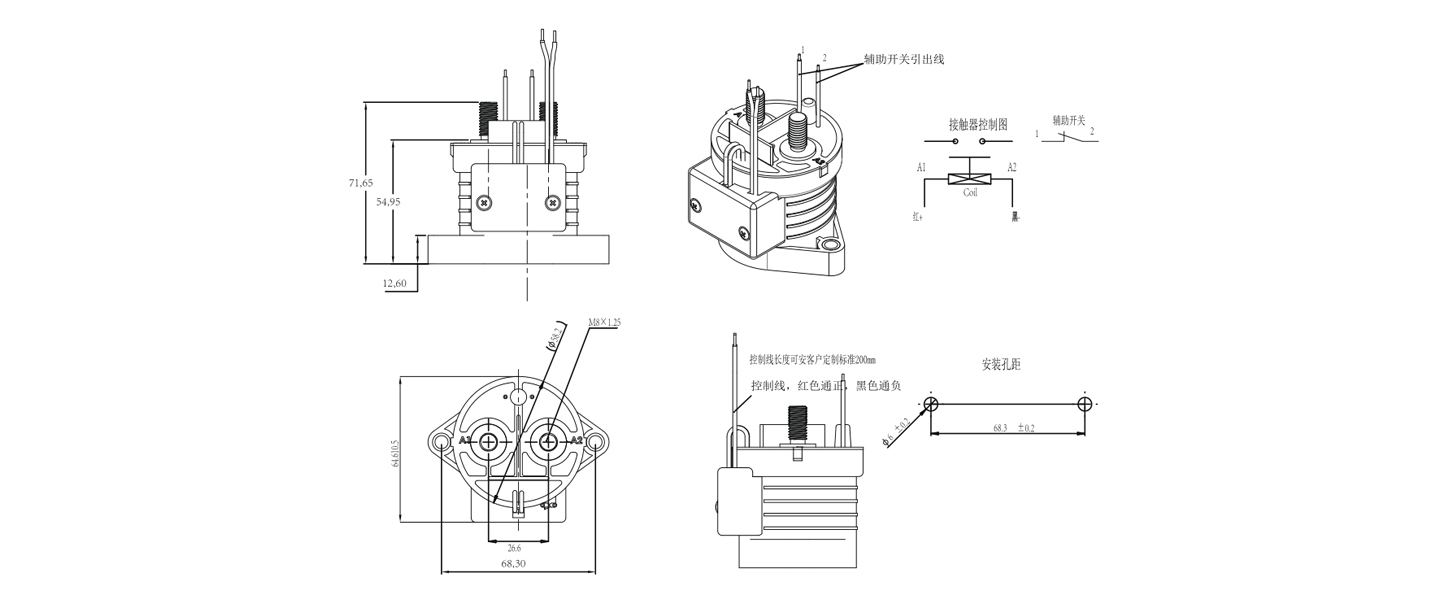

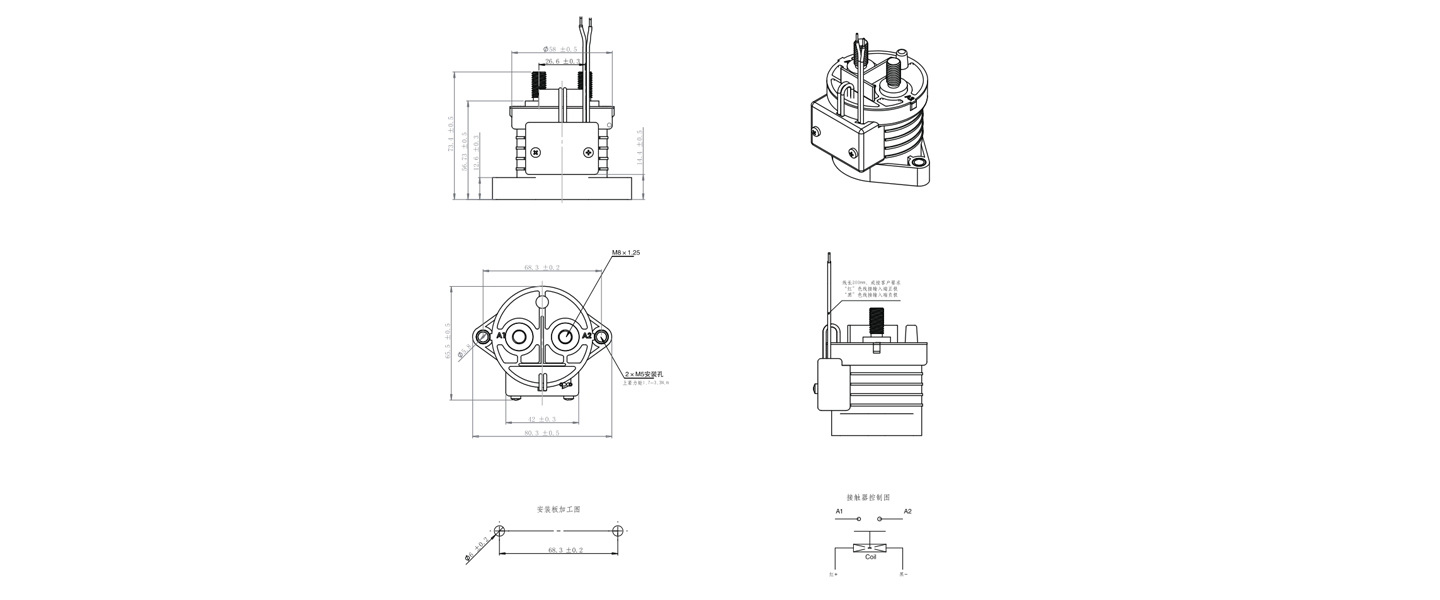

  • 外型尺寸图带辅助开关 (单位mm)

  • 1. When installing the relay, to prevent bad connection, please use the flat washer, spring washer and nut fastening, the external connecting plates need closed to the nearest relay terminal part, ensure good connection. Incorrect connection sequence may can cause severe fever and lead to wires to melt or burn.

    2. The relay terminal have polarity difference, please do it correct connection according to the surface + - on the relay. If the connection polarity is reversed, the electrical performance will be greatly decreased.

    3. The contact parameters of the ratings are impedance loading values, using inductive and capacitive load case, please take measures to absorb the surge, or it may cause electric life decline, and cut off the defect.

    4. Please avoid install near the strong magnetic field ( such as the transformer, the magnetic around) and near the heating element.

    5. It is forbidden to put the relay in more than using range temperature (-40℃~85℃) environment for a long time, otherwise easy to cause the plastic parts aging and impact product performance.

    6. Please avoid adhesion grease and other things on the terminal, please select a suitable connection wire, otherwise it may lead to the terminal abnormal heat, below data for reference:

    • ZXEV03-50A: Nominal cross-section 16mm² above
    • ZXEV02-100A: Nominal cross-section 40mm² above
    • ZXEV01-150A: Nominal cross-section 50mm² above
    • ZXEV01-200A: Nominal cross-section 60mm² above
    • ZXEV01-250A: Nominal cross-section 80mm² above
    • ZXEV01-300A: Nominal cross-section 100mm² above

    7. The screws locking torque control within range of the following rules, if exceed the range, the excessive torque may cause damage.

    (1)Terminals installed part of externally threaded

    • M5 Nut(ZXEV03-50A):2Nm~4Nm;
    • M6 Nut(ZXEV02-100A、ZXEV01-150A):3Nm~4Nm;
    • M8 Nut(ZXEV01-200A、ZXEV01-250A、ZXEV01-300A)6Nm~8Nm。

    (2)The terminals installed part of internally threaded

    • M4 Screw:3Nm~4Nm
    • M6 Screw:3Nm~4Nm
