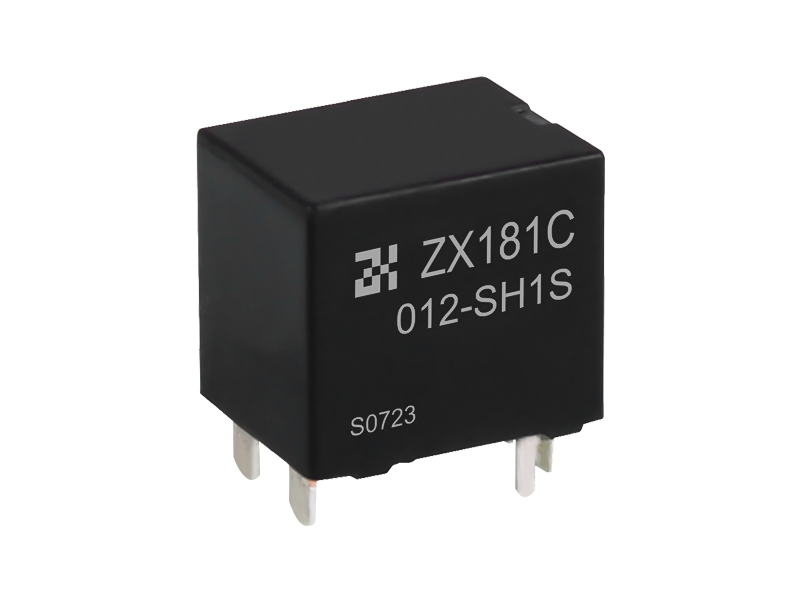

Long Life 14VDC ZX181C Automotive Relays

Long Life 14VDC ZX181C Automotive Relays

Main Features

Miniaturized structure,light weight

Improved contact volume

1 Form U contact form for independent

2 channel control



Typical automotive Applications

EPS DC control                Hazard lamp

ABS system                     Flasher

Contact us PDF Download

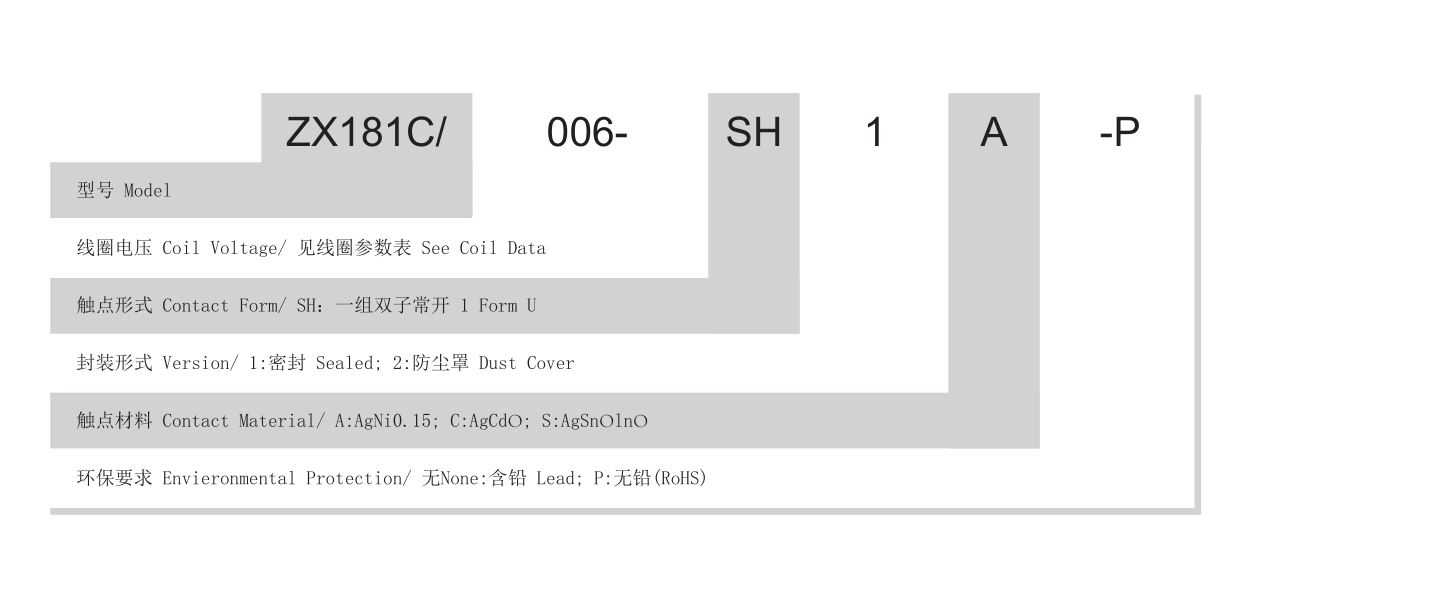

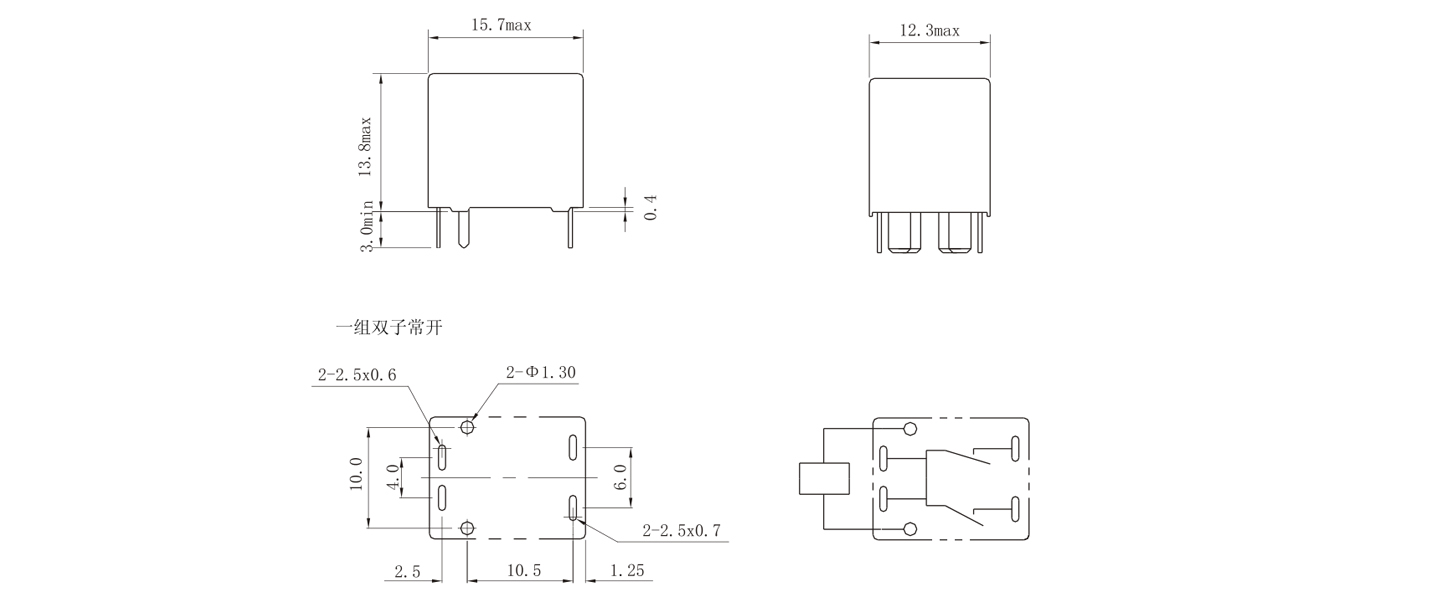

  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Must Release Voltage min.
    006 6 42 0.85 3.5 0.5
    009 9 94 5.2 0.7
    010 10 117 6.3 0.8
    012 12 167 7.3 1.0





    Contact Data
    Material AgSnOlnO; AgNi10; AgNi0.15; AgCdO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form U
    Max.Switching Current Make 2×35A
    Break 2×12.5A
    Max.Continuous Current 2×30A, 2min
    Max.Switching Voltage 16VDC
    Min.Load 0.5A/12VDC
    Sevice Life Mechanical 1×10 7 ops.
    Electrical 1×10 5 ops.

    Characteristics
    Operate/Release Time 10ms. typical/5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 10g, 11ms.
    Vibration Resistance DA1.5mm, 10-55Hz
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 100℃
    Weight Approx 6g
    Drop Resistance Drop Resistance 1M height drop on concrete



  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.Electrical life obtained at lamp load at 2x6A,14VDC with 1ms ON,14ms OFF.

    4.Electriacl life is strongly dependent of switiching fieqency.ON/OFF ratio, envionmental conditions and level.

    5.Equivalence:Fujitsu FBR53ND10-Y-HW

Product description

The ZX181C automotive relay is ideal for automotive electrical systems. It features a miniaturized design and weighs only about 6g, making it easy to install in compact spaces in the car. The unique 1 Form U contact form enables independent control of 2 channels, which can flexibly meet the needs of various circuits. In terms of electrical performance, the coil voltage has multiple options of 6V, 9V, 10V, and 12V. It has a rich contact material, with a maximum switch current of 2×35A when closed and 2×12.5A when disconnected. The mechanical life is up to 1×10⁷ operations and the electrical life is 1×10⁵ operations. It can operate normally at -40℃ to 85℃, is shock-resistant and vibration-resistant, and is widely used in key areas such as EPS DC control and ABS systems.
