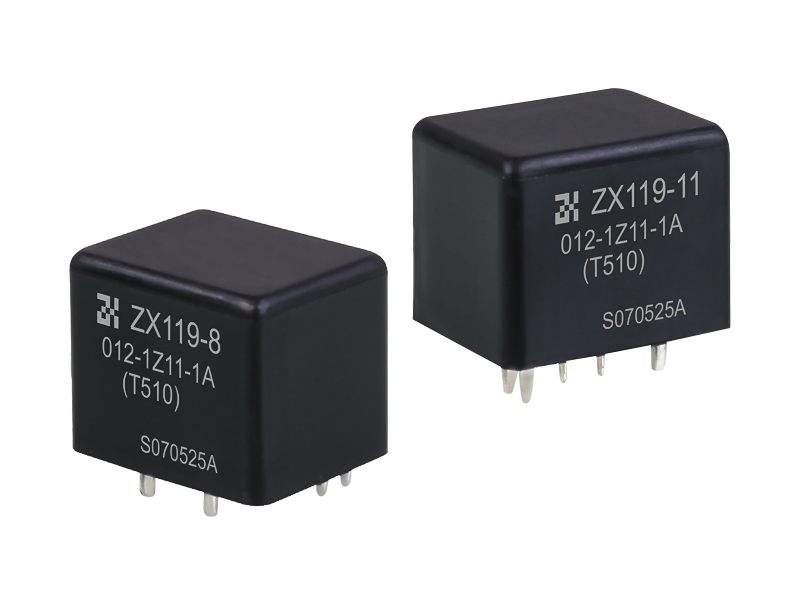

ZX119 Automotive Relays

Main Features

30A to 45A continuous current capacity

Availble with 2 footprints

Available and open,dust cover and sealed version

Automotive-oriented design



Typical automotive Applications

Flasher                                   Inertia valve control                   Air conditioning

Interval wiper control              Automatic mirror adjustment     Central door lock

Fuel pump control                  Sunroof control                         ABS system

Ventilation motor                    Hazard warning light                 Belt tension adjustment

Anti-theft alarm system           Heater control                          Power window

Safety belt warning system     Rear window heating               Seat positioning

0
Views: 259
Contact us PDF Download
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    006 6 19 1.6 3.3 8.9 0.6
    012 12 20 6.8 19.3 1.2
    024 24 362 13.9 38.7 2.4
    Contact Data
    Material AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC<
    Contact Form 1 Form A 1 Form B 1Form C
    NO NC
    Max.Switching Current 100A 30A 100A 30A
    Max.Continuous Current Make 60A 30A 60A 30A
    Break 45A 30A 45A 30A
    Max.Switching Voltage See Reference Curve, Relate to Current
    Min Load 0.1A/12VDC (AgNi0.15); 0.5A/12VDC (AgSnOInO)
    Sevice Life Mechanical 1×107 ops
    Electrical 2×10 5 ops. See Note 4
    Characteristics
    Operate/Release Time 5ms. typical/1.5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 20g, 11ms
    Vibration Resistance DA1.5mm, 20-200Hz
    Ambient Temperature Operating:-40℃ to 85℃
    Storage:-40℃ to 155℃
    Weight Open: Approx 18g; Covered: Approx 23g
    Drop Resistance Drop Resistance 1M height drop on concrete

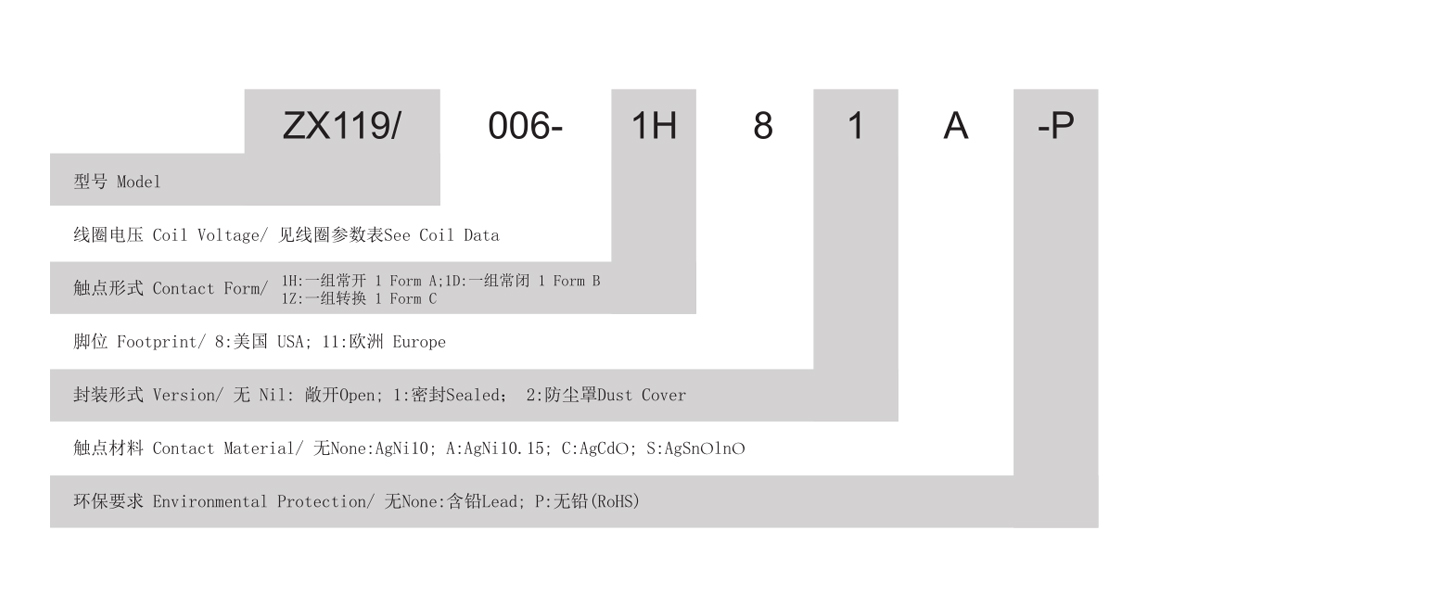

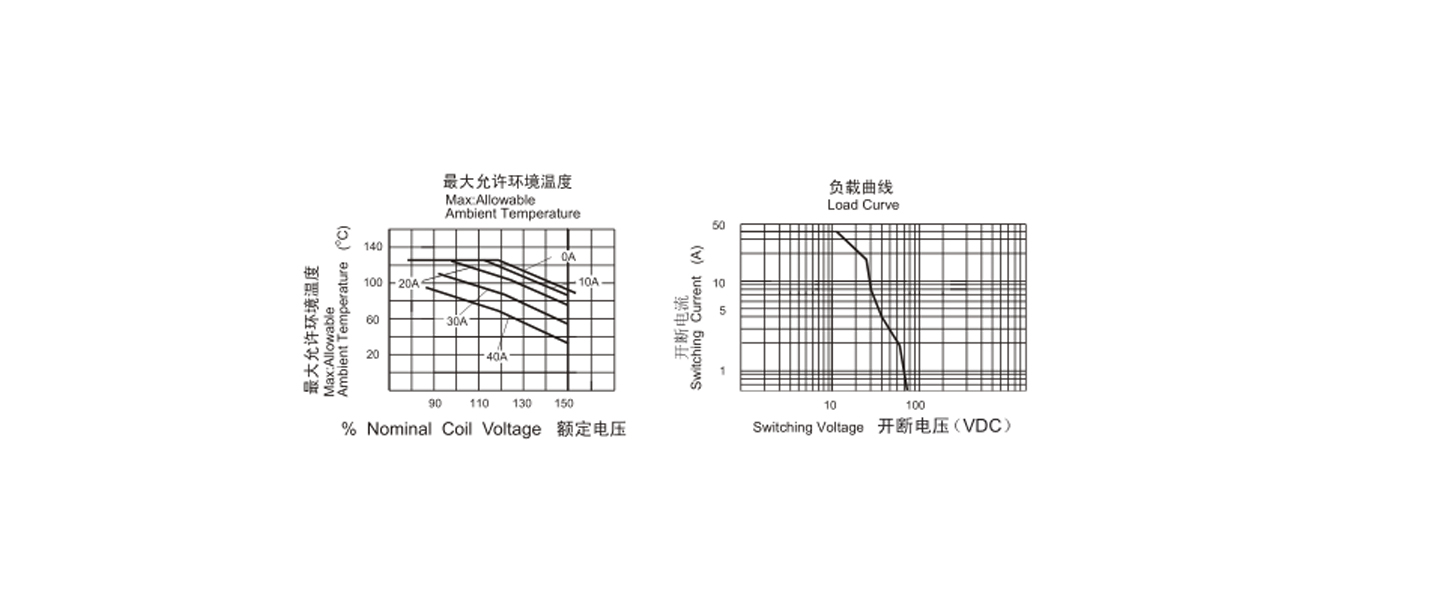

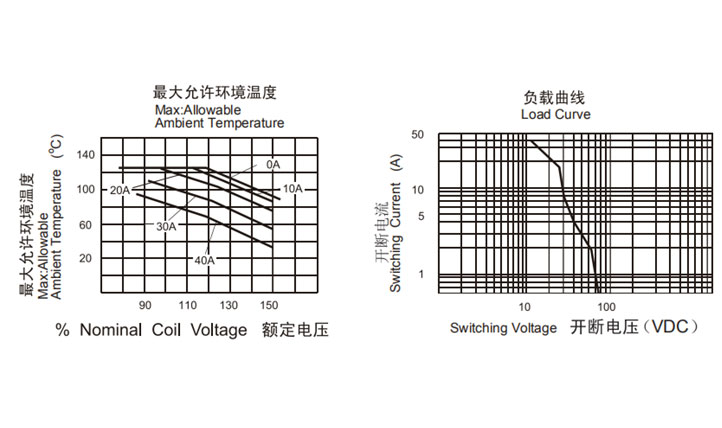

    Referencd Curve

  • Referencd Curve

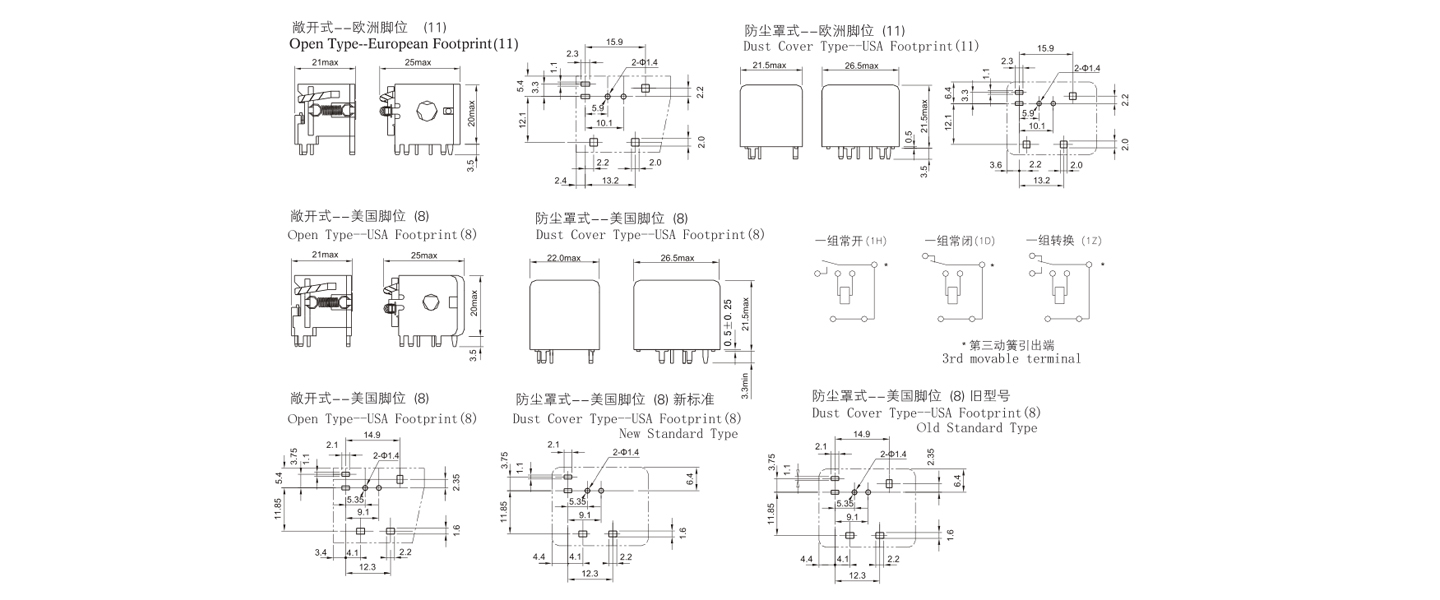

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes:

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.At ambient temperature of 85℃,Maximum allowable voltage should be reduced to 72%.

    4.Electriacl life obtained at resistive or inductive load at 40A,13.5VDC with suitable are-suppression circuit attached with operating frequency of 1 ops/sec.

    5.Equivalence:Tyco Power K, P&B VKP
