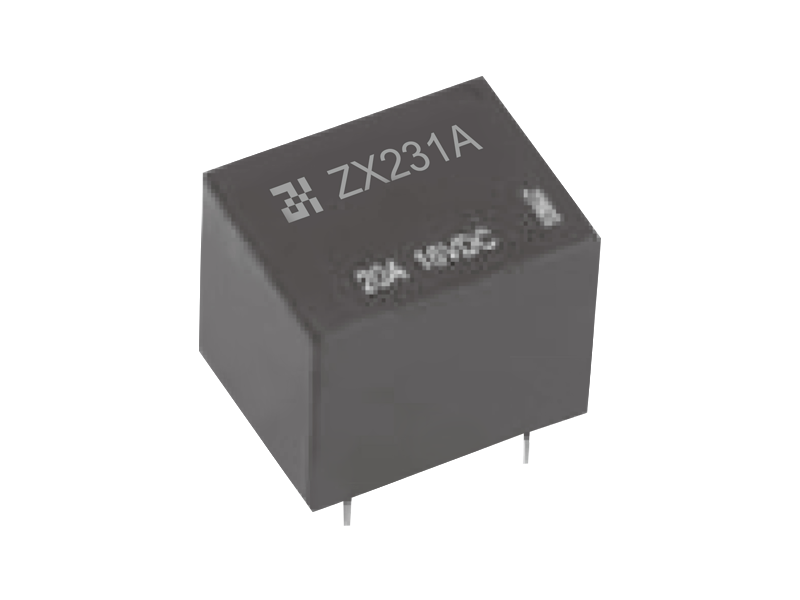

20A 16VDC Sell Online ZX231A Automotive Relays

Main Features

Subminiature tyep,compact design

Heavy duty,contact capacity up to 20A 16VDC

Low cost PCB relay



Typical automotive Applications

Central door lock

ABS system

Belt tension adjustment

Power window

Seat positioning

0
Views: 115
Contact us PDF Download
  • Coil Data

    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Must Release Voltage min.
    006 6 45 0.8 3.2 0.6
    012 12 180 6.3 1.2
    024 24 720 12.6 2.4

    Contact Data

    Material AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Rated load Resisive 20A 16VDC
    Sevice Life Mechanical 1×10 7 ops.
    Electrical 1×10 5 ops.



    Characteristics

    Operate/Release Time 10ms. max/5ms. max
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength Between coil and contacts;1000Vrms,1mim
    Between open contacts;750Vrms,1mim
    Shock Resistance Functional:10g,11ms;
    Destructive:100g
    Vibration Resistance DA1.5mm, 20-220Hz
    Ambient Temperature -40℃ to 85℃
    Weight Approx 10g

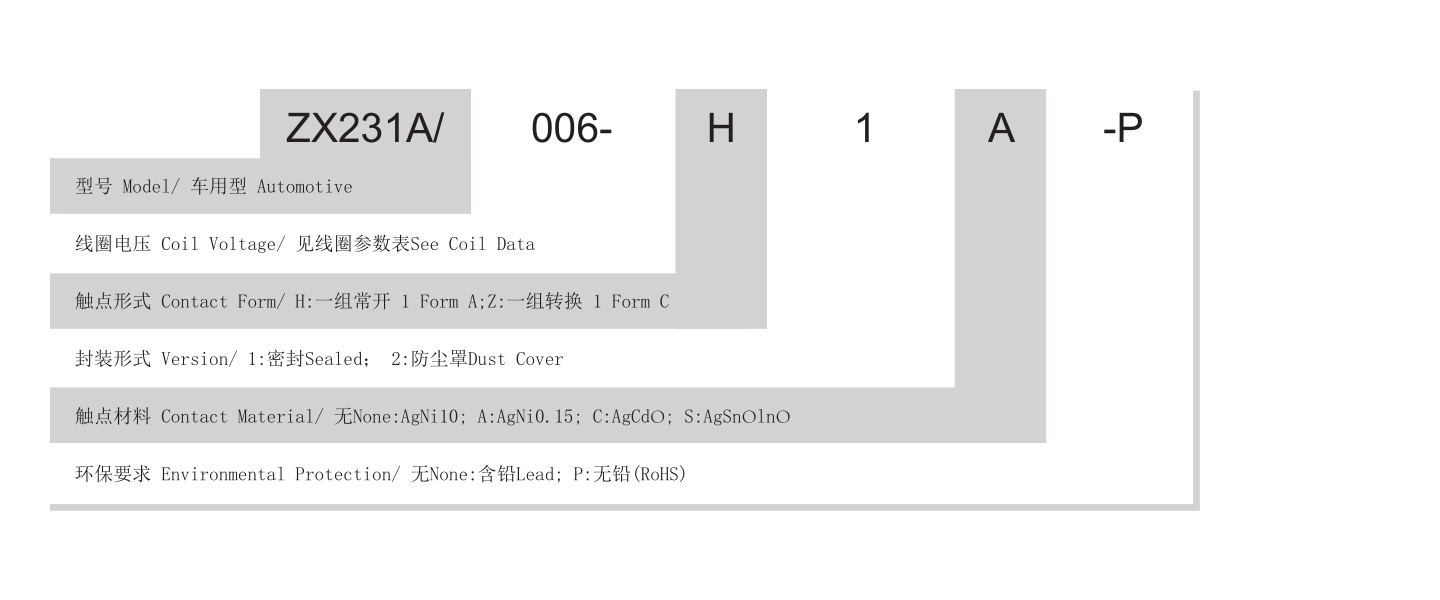

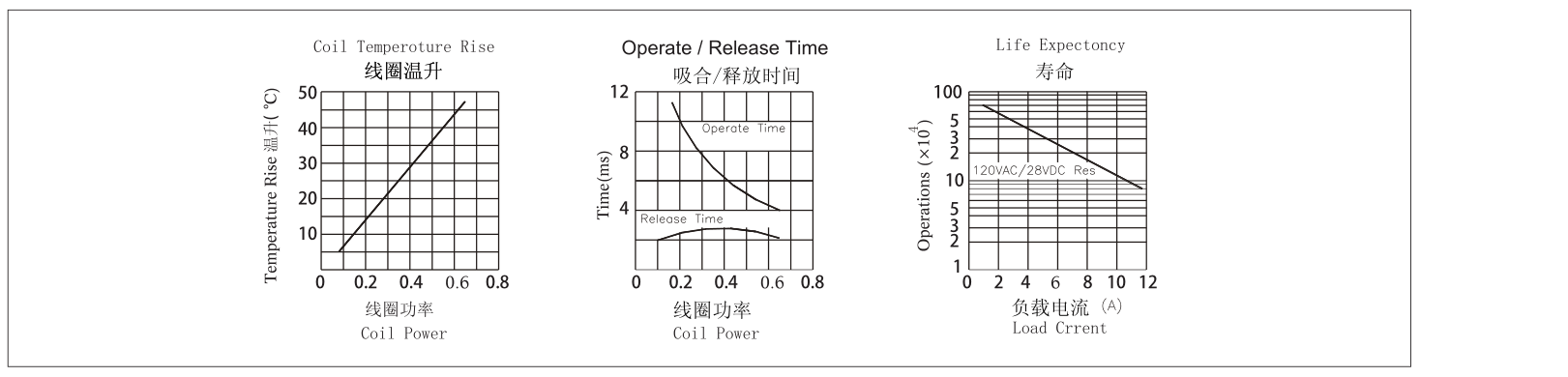

    Referencd Curve

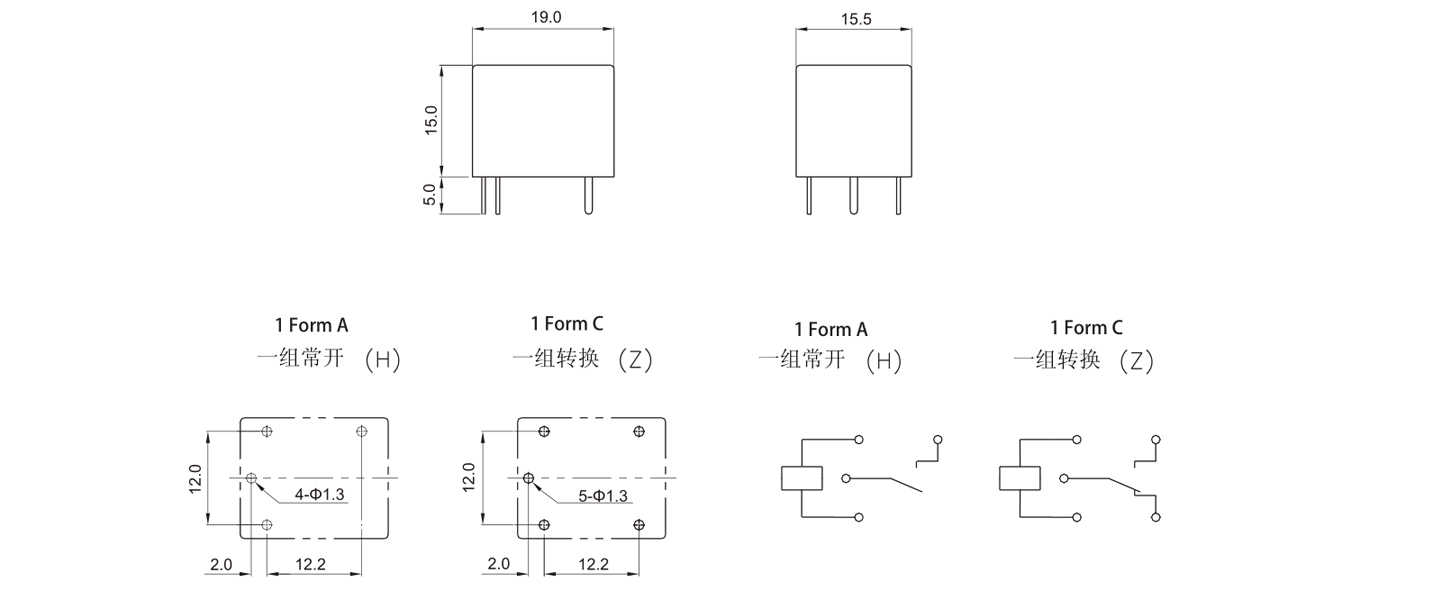

  • Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes:

    All parameters,unless otherwise specified,are measured at ambient temperature 23℃.
