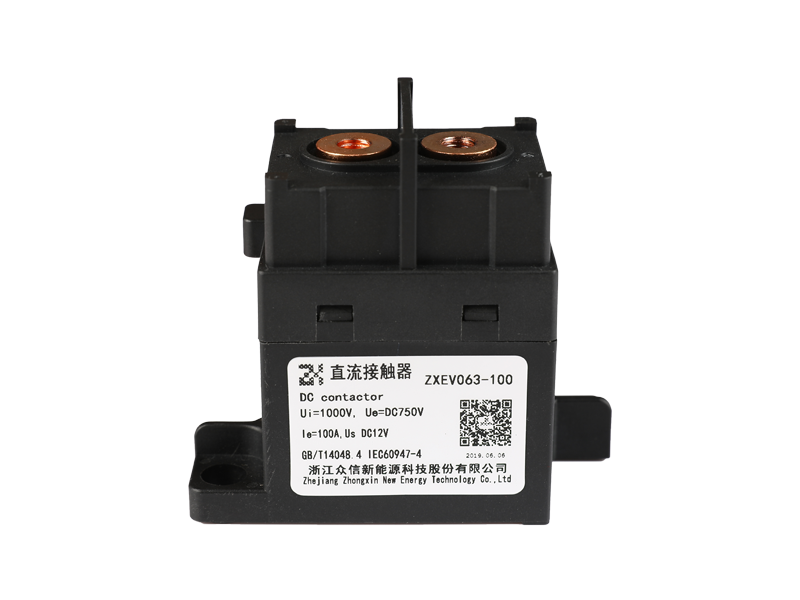

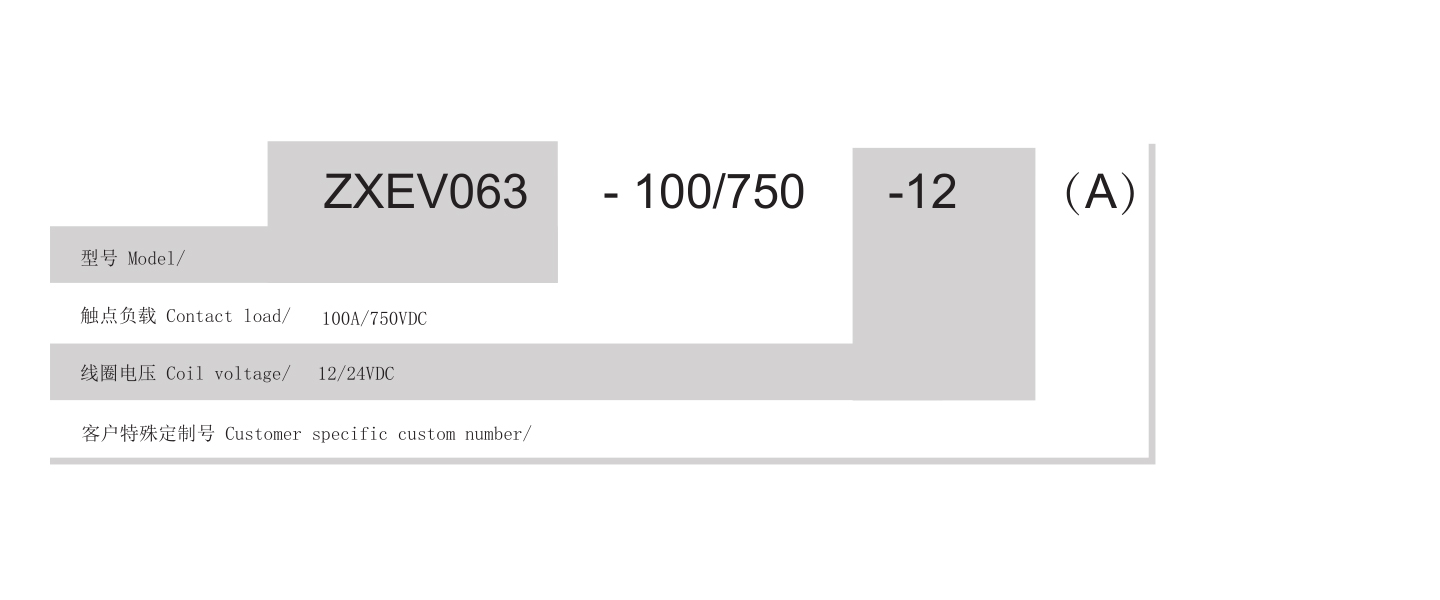

ZXEV063-100A 750VDC High voltage direct current relay

1. Small and lightweight:Internally adopt reliable sealing technology and filled with nitrogen which arc colling ability is high. It can cut off high voltage DC in a short time.

2. High contact reliability:Due to the contact sealed in the nitrogen, therefore it will be not oxidized, also achieving the contact of the dustproof and waterproof.

3. Safety and reliable:Use the professional explosion-proof structure design,to achieve a high degree of security,adopt magnetic quenching helps to cut-off the DC load quickly.

4. Application:DC charging pile, electric vehicles, hybrid vehicles, battery charging and discharging system,Photovoltaic power generation system such as dc high voltage application.

Contact us PDF Download
  • Contact Data
    Contact load(FLA) 100A/750VDC
    Contact form 1H
    Voltage drop across contacts per 50A 50mV Max @200A
    Limited of current 400A 10秒
    Max switching current 1000A,450VDC(1次)
    Max switching voltage 900VDC
    Max switching power 450KW
    Electric endurance 100A/450VDC-10000次(Resistive load)
    100A/750VDC-6000次(Resistive load)
    Mechanical endurance 2*105次
    Auxiliary switch No
    Performance Parameters
    Insulation resistance 1000M Ω(1000VDC)
    Dielectric strength Coil to contact 4000VAC 1 min
    Across open contact 3000VAC 1 min
    Operate time ≤30ms
    Release time ≤10ms
    Shock resistance functional
    196m/s² 20G above
    Shock resistance destructive
    490m/s²
    Ambient temperature
    -40~85℃
    Humidity
    5~85%RH
    Virbration resistance
    10-200HZ,49m/s²

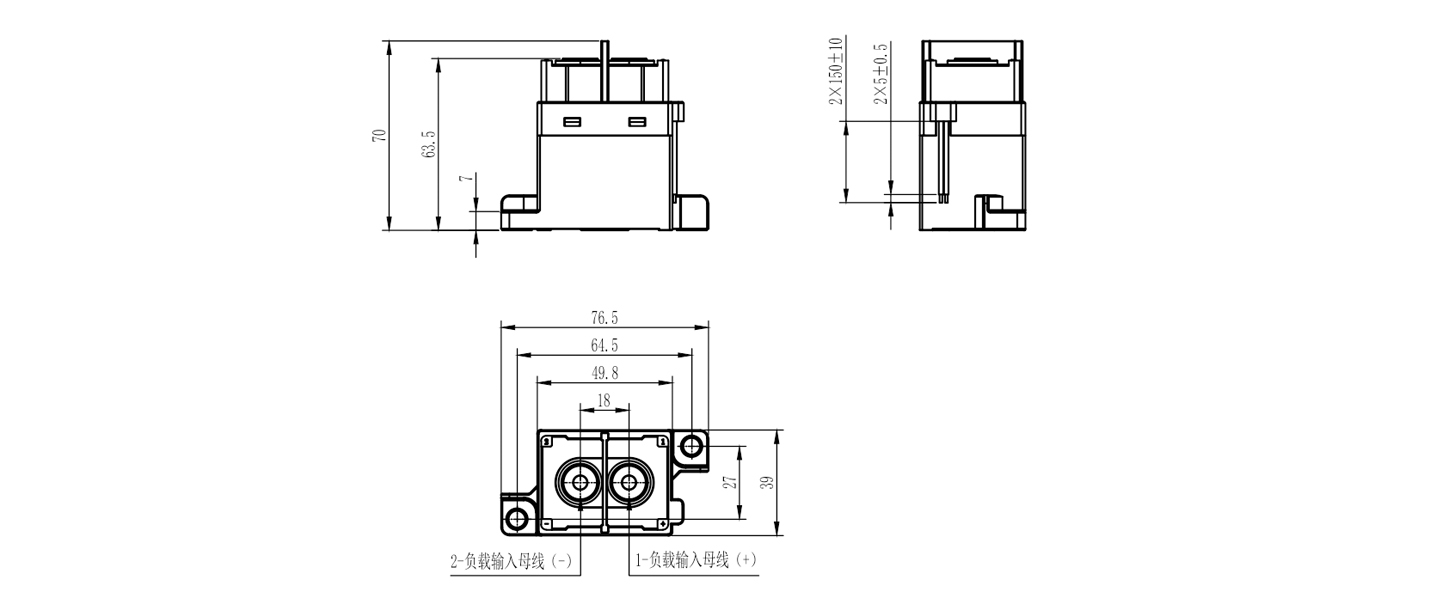

    Terminal
    M6 Internal thread
    Unit weight
    410g
    Package
    Epoxy encapsulation
    Coil Data
    Coil resistance (Ω±10%)@23℃
    Nominal coil voltage Min operating voltage Release voltage Coil power consumption
    12VDC ≤9VDC ≥1VDC 4.5W
    24VDC ≤18VDC ≥2VDC 4.5W

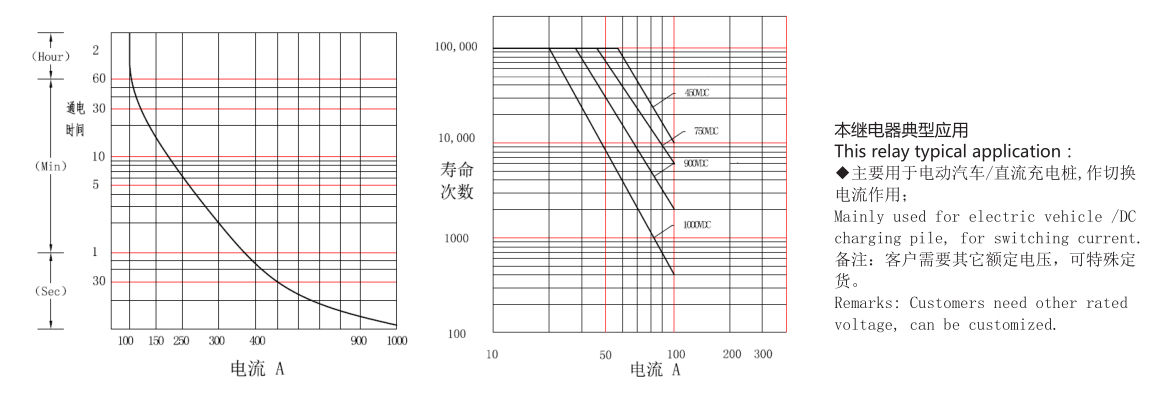

    Referencd Curve

  • 1. When installing the relay, to prevent bad connection, please use the flat washer, spring washer and nut fastening, the external connecting plates need closed to the nearest relay terminal part, ensure good connection. Incorrect connection sequence may can cause severe fever and lead to wires to melt or burn.

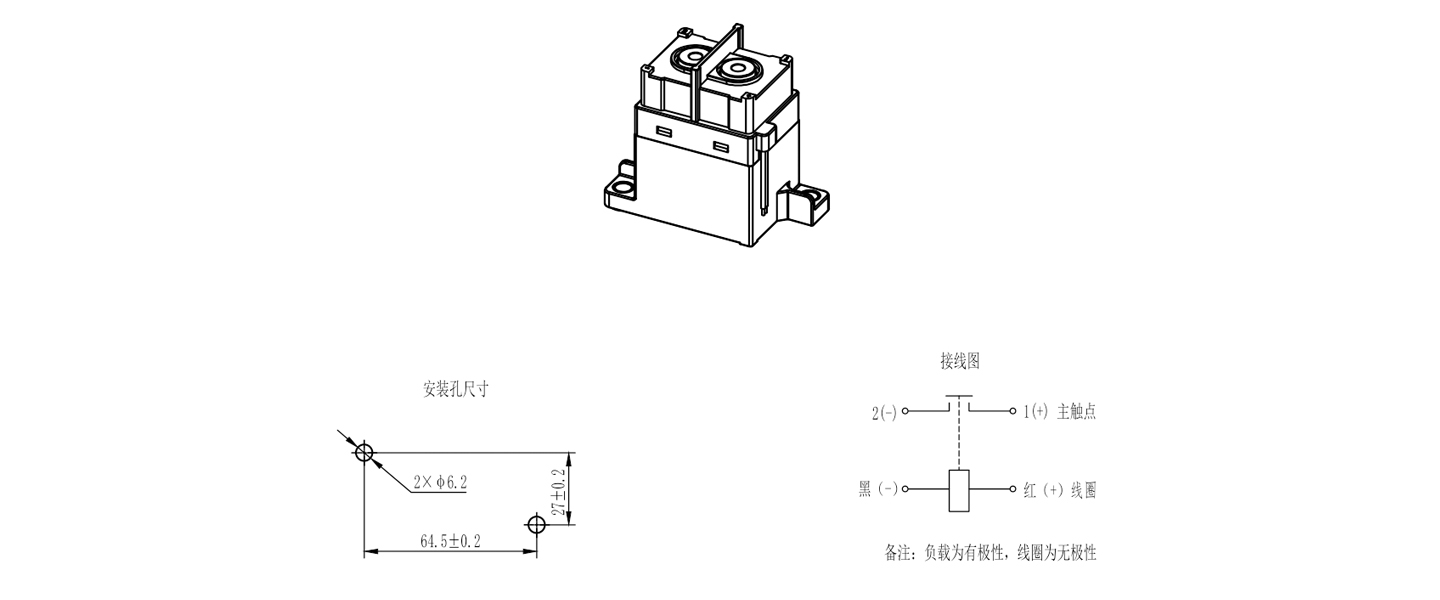

    2. The relay terminal have polarity difference, please do it correct connection according to the surface + - on the relay. If the connection polarity is reversed, the electrical performance will be greatly decreased.

    3. The contact parameters of the ratings are impedance loading values, using inductive and capacitive load case, please take measures to absorb the surge, or it may cause electric life decline, and cut off the defect.

    4. Please avoid install near the strong magnetic field ( such as the transformer, the magnetic around) and near the heating element.

    5. It is forbidden to put the relay in more than using range temperature (-40℃~85℃) environment for a long time, otherwise easy to cause the plastic parts aging and impact product performance.

    6. Please avoid adhesion grease and other things on the terminal, please select a suitable connection wire, otherwise it may lead to the terminal abnormal heat, below data for reference:

    • ZXEV03-50A: Nominal cross-section 16mm² above
    • ZXEV02-100A: Nominal cross-section 40mm² above
    • ZXEV01-150A: Nominal cross-section 50mm² above
    • ZXEV01-200A: Nominal cross-section 60mm² above
    • ZXEV01-250A: Nominal cross-section 80mm² above
    • ZXEV01-300A: Nominal cross-section 100mm² above

    7. The screws locking torque control within range of the following rules, if exceed the range, the excessive torque may cause damage.

    (1)Terminals installed part of externally threaded

    • M5 Nut(ZXEV03-50A):2Nm~4Nm;
    • M6 Nut(ZXEV02-100A、ZXEV01-150A):3Nm~4Nm;
    • M8 Nut(ZXEV01-200A、ZXEV01-250A、ZXEV01-300A)6Nm~8Nm。

    (2)The terminals installed part of internally threaded

    • M4 Screw:3Nm~4Nm
    • M6 Screw:3Nm~4Nm

Product description

ZXEV063-100A 750VDC High voltage direct current relay is equipped with voltage capability of 750 volts DC. The 750VDC High voltage direct current relay can easily cope with high-voltage environments and ensure stable and reliable operation in high-voltage DC systems. The high-voltage DC relay has a fast response speed and can quickly open and close contacts to achieve rapid switching of current. This characteristic makes it play an important protective role in the power system, helping to reduce the occurrence of faults and quickly restore normal operation of the system. The 750VDC high-voltage DC relay is equipped with a continuous current capability of 100A, which can better cope with instantaneous current surges and reduce the risk of equipment damage caused by current overload. This high voltage DC relay has high current handling capabilities. It can operate stably under high current loads and provide reliable current control for power systems.

Zhejiang Zhongxin New Energy Technology Co., Ltd. is well-known China ZXEV063-100A 750VDC High voltage direct current relay suppliers and custom ZXEV063-100A 750VDC High voltage direct current relay factory, established in February 2016 after the Haiyan Zhongxin Electronics Co., Ltd.'s stock reform, with a registered capital of 30 million yuan. Is a high-tech enterprise specializing in the research and development, production, sales and service of high-voltage DC relays for new energy, automotive relays, magnetic holding relays, ZXEV063-100A 750VDC High voltage direct current relay and other products. It has more than 350 skilled employees, more than 50 highly educated technical R & D and management staff, more than 50 kinds of products and 1,000 models, and an annual production capacity of more than 50 million. Products are widely used in high-voltage DC and low-voltage AC and DC applications such as automobiles, DC charging piles, photovoltaic power generation, rail transit, energy measurement, reactive power compensation, energy storage equipment, and household appliances. The company is located at No. 339 Jixing Road, Wanghai Street, Haiyan County, and is located in the central area of Shanghai, Hangzhou, Ningbo, and Suzhou in an hour.

Zhongxin has more than ten years of relay research and development, manufacturing experience. A number of technical talents are experts in the field of relay research and development in China earlier, with strong technical force. They are the standard drafting units for the domestic magnetic latching relay industry, and are national high-tech enterprises undertaken by the National 863 Spark Program. In the production process, the international standards and quality management standards of the custom ZXEV063-100A 750VDC High voltage direct current relay are fully implemented, and the ISQ9001 and TS16949 management system certifications have been passed. The products have dozens of national patents. our custom ZXEV063-100A 750VDC High voltage direct current relay products are sold in Europe, the United States, Southeast Asia, South Africa, Brazil and Hong Kong and Taiwan. The main customers of magnetic latching relays are domestic and international well-known manufacturers such as: Hangzhou Juhua, Hangzhou Xili, Hangzhou Haixing, Ningbo Samsung, Beijing Bona, Shenzhen Kelu, Jiangsu Linyang, EDMI, ZIV, etc., the main customers of automotive relays are internationally renowned manufacturers such as: BMW, Mercedes-Benz, TOYOTA, MITSUBISHI, GM, FORD, HONDA, TESLA, etc.
