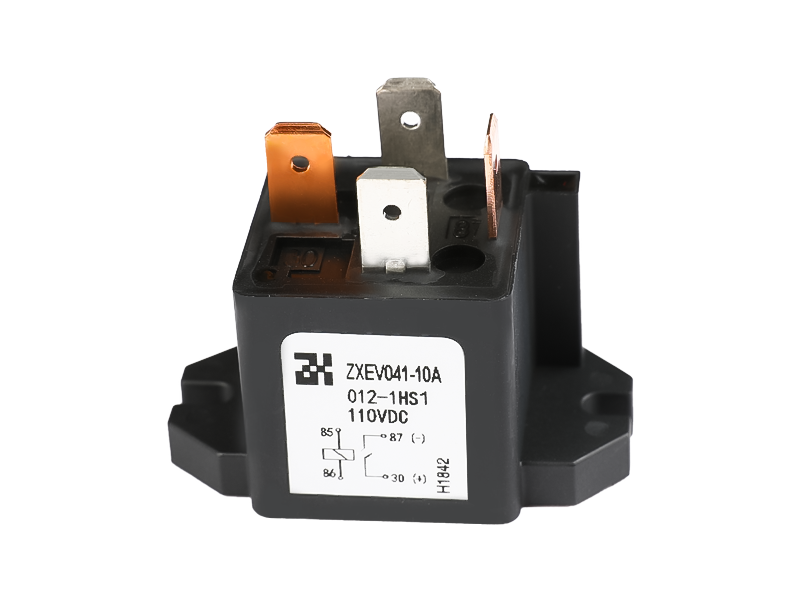

110VDC ZXEV041-10A Pre-rush relay Medium Pressure DC Contactor

Characteristics
10A continuous current capability
Automotive Design
Standard pin size for foot position
Dust cover type resists harsh environment



Typical application
Headlight                       Start relay
Fog lights                       Radiator fans
Horn                               Power window
Blower motor                Low-speed car pre-charging

0
Views: 252
Contact us PDF Download

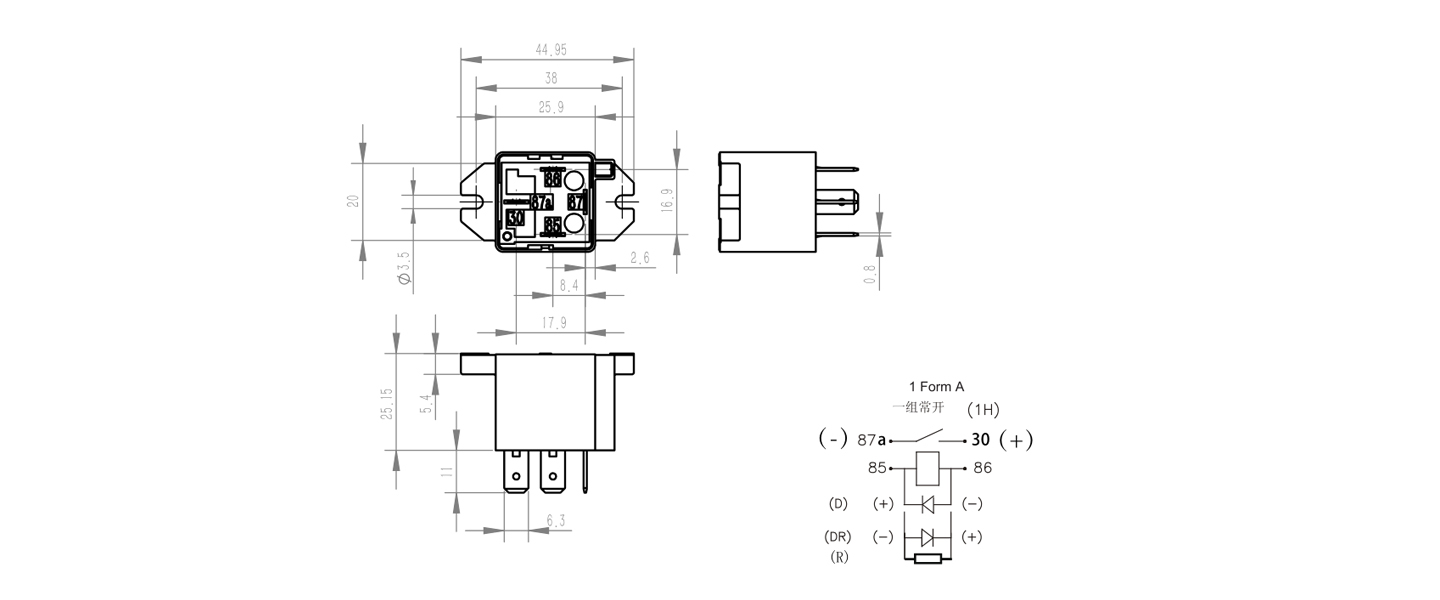

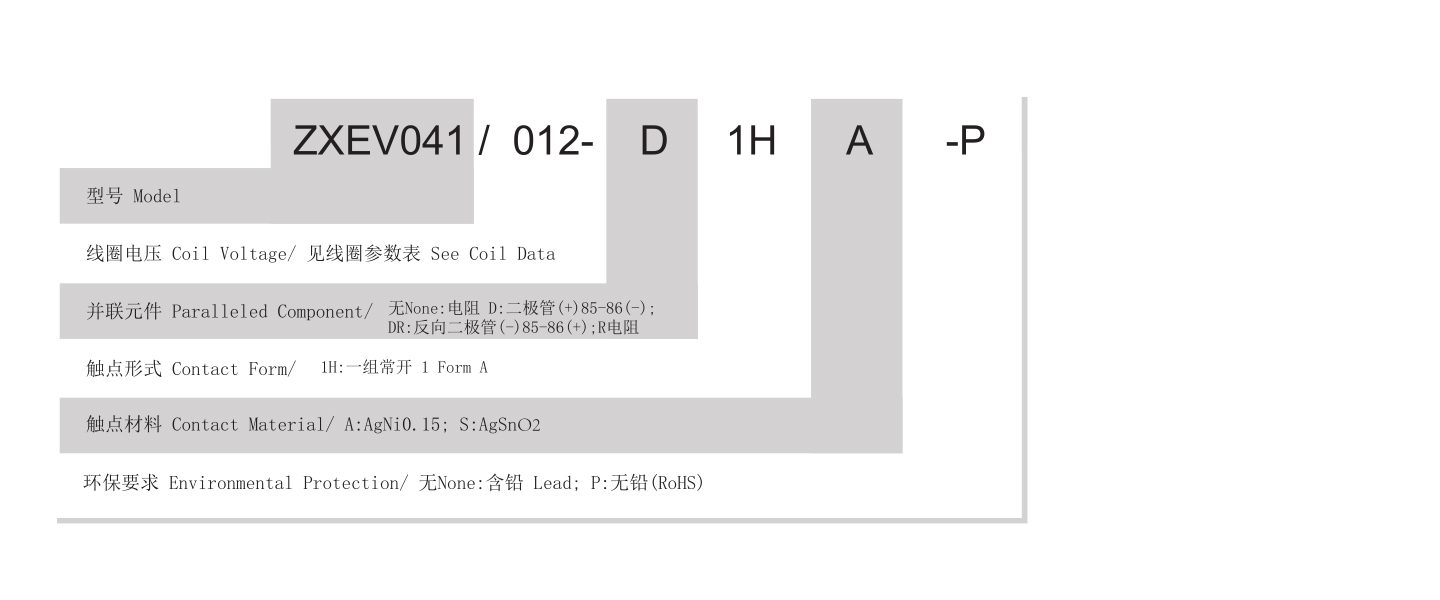

  • Coil Data
    Model Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    D 012 12 72 2 7.2 18.0 1.2
    024 24 288 14.4 35 2.4
    Contact Data
    Material
    AgSnO2
    Initial Contact Resistance
    100mΩ, max. at 0.1A, 6VDC
    Contact Form
    1 Form A
    Max.Continuous Current
    10A
    Min.Load
    1A/5VDC
    Sevice Life
    Mechanical
    107ops.
    Electrical
    105ops. 10A 110VDC
    Performance Parameters
    Operate/Release Time
    7ms. typical/2ms. typical
    Dielectric Withstand Voltage Coil to contact
    100MΩ, at 500VDC, 50%RH
    Across open contact
    500Vrms, 1 min
    Operate time
    20g, 11ms.
    Vibration
    10-40Hz:Double amplitude DA1.27mm,40-70Hz:5g
    70-100Hz:Double amplitude DA0.5mm, 100-500Hz:5g
    Ambient Temperature
    Operating:-40℃ to 85℃
    Storage:-40℃ to 125℃
    Weight
    Approx 34.5g;
    Drop Resistance
    Drop Resistance 1M height drop on concrete
  • 1. The above parameters are subject to room temperature of 23 degrees unless otherwise specified.
    2. The maximum on-current refers to the surge current on the lamp.
    3. When the ambient temperature is 85 degrees, the maximum allowable voltage should be reduced to 72% of the original value.
    4. If applied to 24V system, please contact the factory for contact load capacity.
