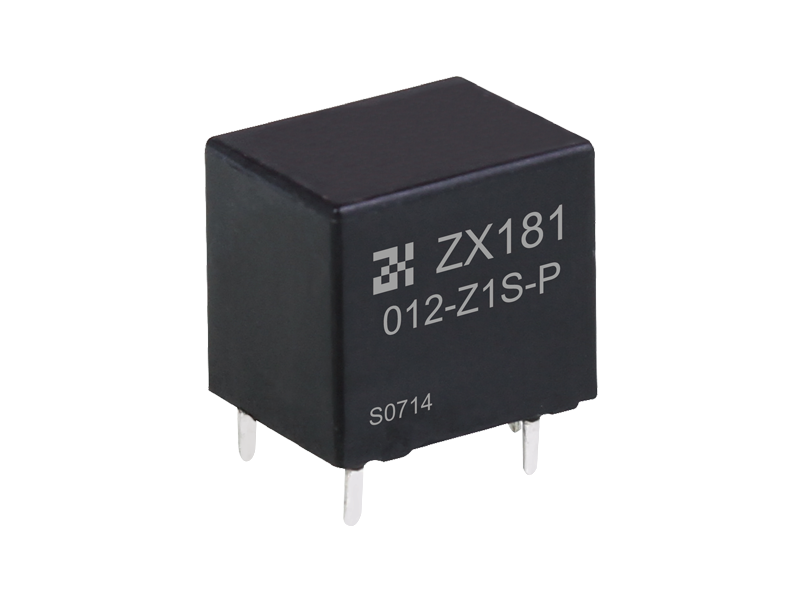

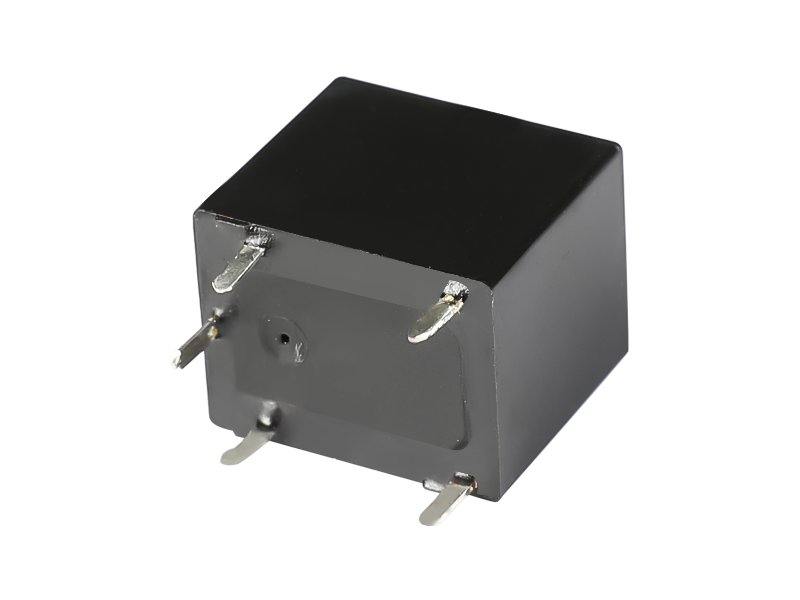

ZX181 Automotive Relays

Main Features

Miniaturized structure,light weight

Improved contact capacity

Big gap type available for heavy motor load switching



Typical automotive Applications

Power antenna                                 Anti-theft alarm system

Power window                                  Automatic mirror adjustment

Interval wiper control                     Automatic head rest adjustment

Sunroof control                                 Flasher

0
Views: 71
Contact us PDF Download

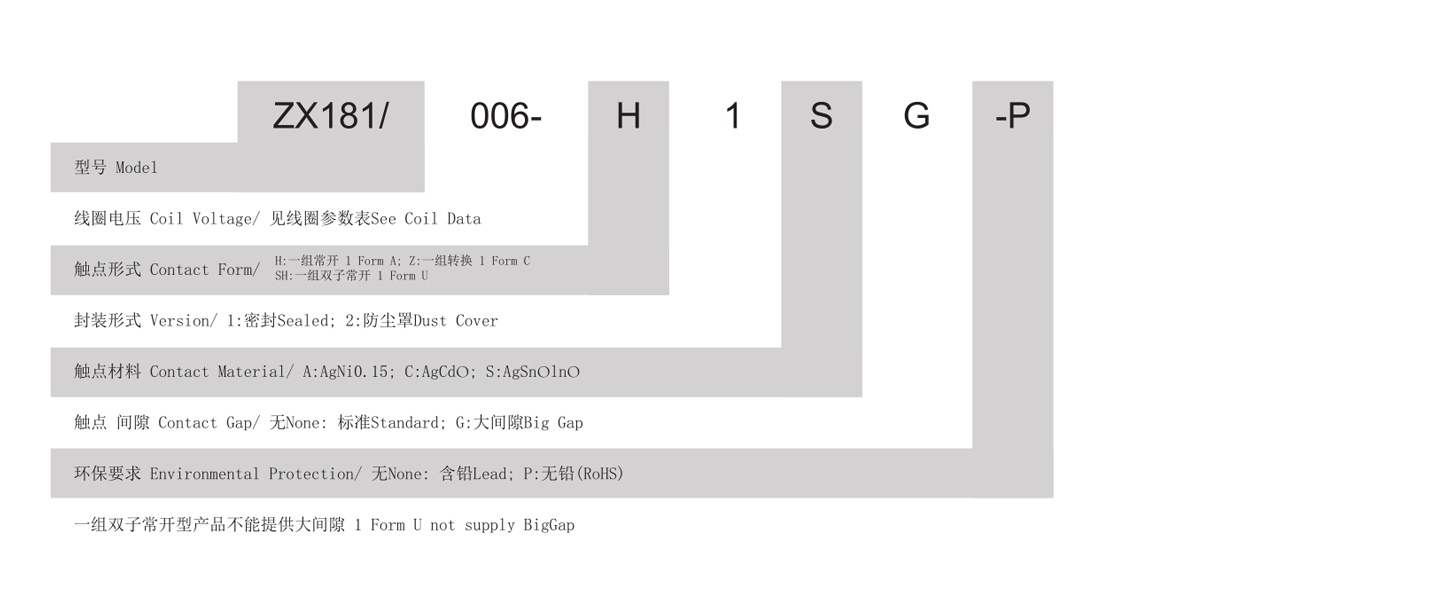

  • Coil Data
    Coil Voltage Code

    Nominal Voltage((VDC)

    Coil Resistance(Ω) 土10%
    Must Operate Voltage max.((VDC)

    Must Release Voltage min.(VDC)

    Standard(0.6W)
    Big Gap(0.8W)
    006
    6
    60
    45
    3.6
    0.5
    009
    9
    135
    100
    5.4
    0.6
    010
    10
    167
    123
    6.3
    0.9
    012
    12
    240
    180
    7.3
    1.2
    024
    24
    960
    720
    14.4
    2.4
    Contact Data
    Material
    AgNi0.15; AgSnOlnO; AgCdO
    Initial Contact Resistance
    100mΩ, max. at 0.1A, 6VDC
    Contact Form
    1 Form A
    1 Form C
    1 Form U
    Max.Switching Current
    Make
    60A
    2X30A
    Break
    20A
    2X10A
    Max.Continuous Current

    35A, 10 min; 25A, 1 hr
    2×10A, 2min
    Max.Switching Voltage

    16VDC
    Min.Load

    0.1A/12VDC
    Sevice Life Mechanical
    1×107ops.
    Electrical
    1×105ops. 见说明
    Characteristics
    Operate/Release Time 10ms. typical/1.5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Resistance 10g, 11ms
    Vibration Resistance DA1.5mm, 10-55Hz
    Ambient Temperature Operating:-30℃ to 85℃
    Standard: -40℃ to 125℃
    Storage:-40℃ to 100℃
    Weight Approx 6g
    Drop Resistance Drop Resistance 1M height drop on concrete

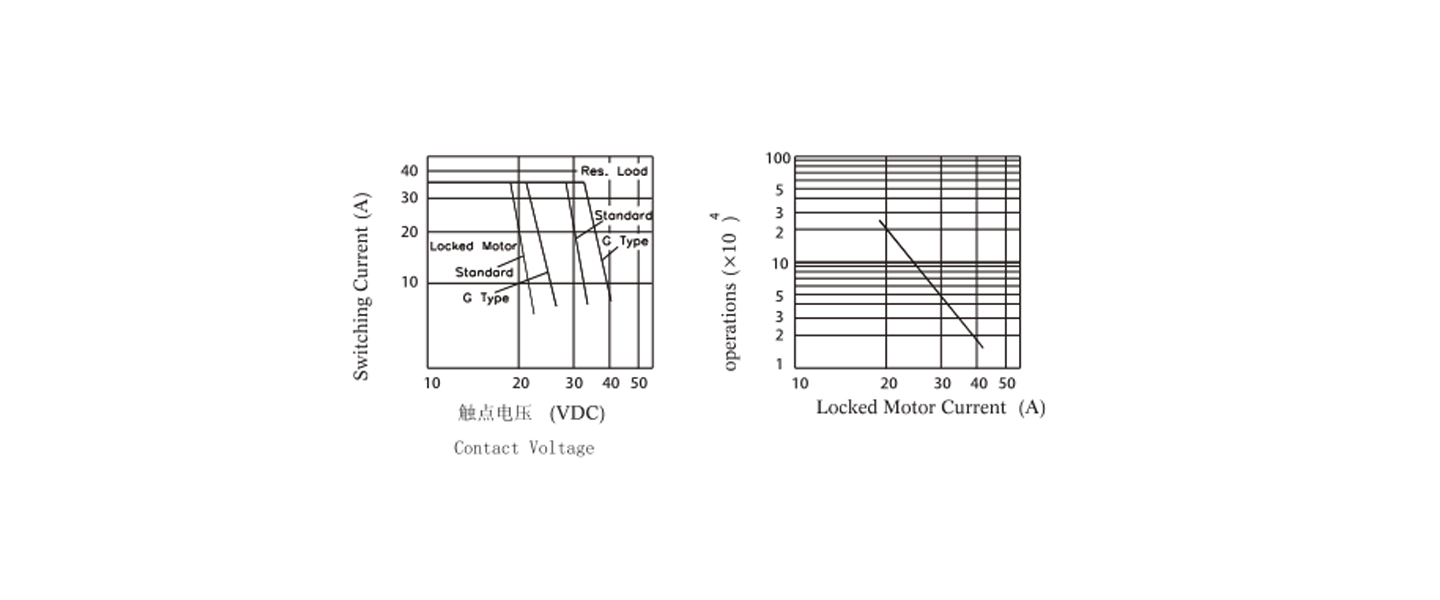

    Referencd Curve

  • Referencd Curve

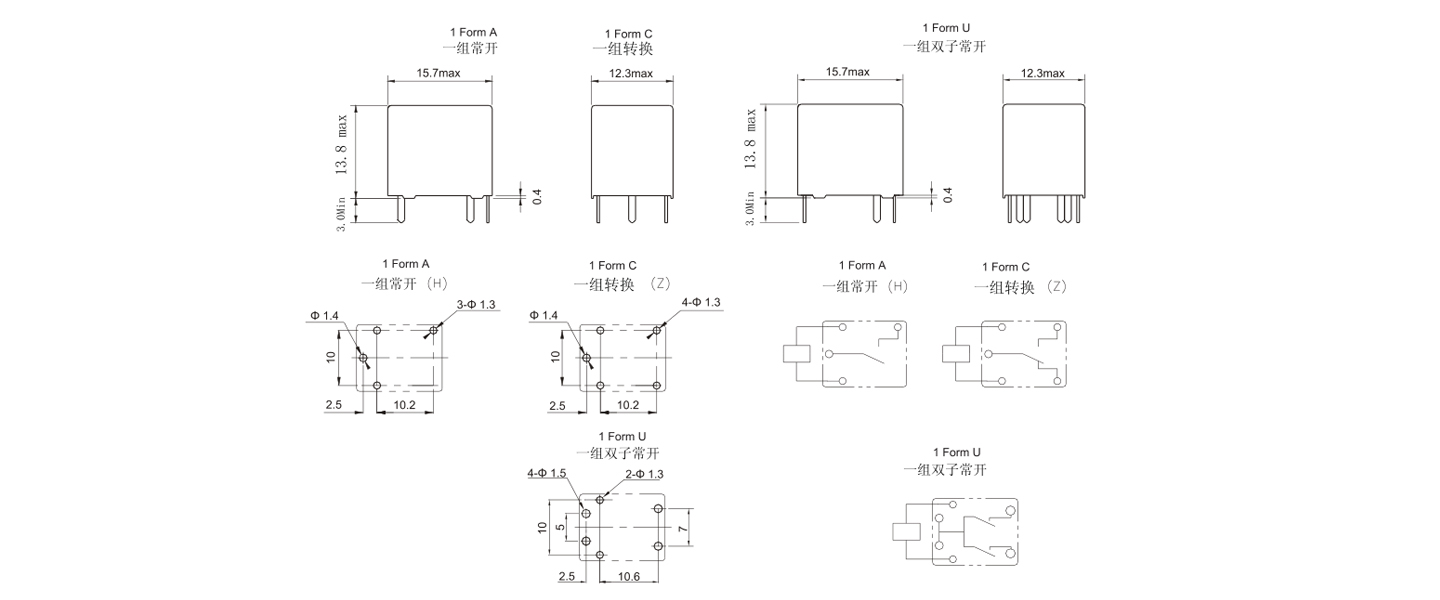

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes:

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.Electrical life of 1 Form A,1 Form C obtained at motor load of locked rotor at 20A,14VDC or resistive load of 10A,14VDC;1 Form U at 2x6A,14VDC resistive with operating frequency of 6 ops/min.

    4.Electriacl life is strongly dependent of switiching fieqency.ON/OFF ratio, envionmental conditions and level.

    5.Equivalence:Fujitsu FBR51-52
