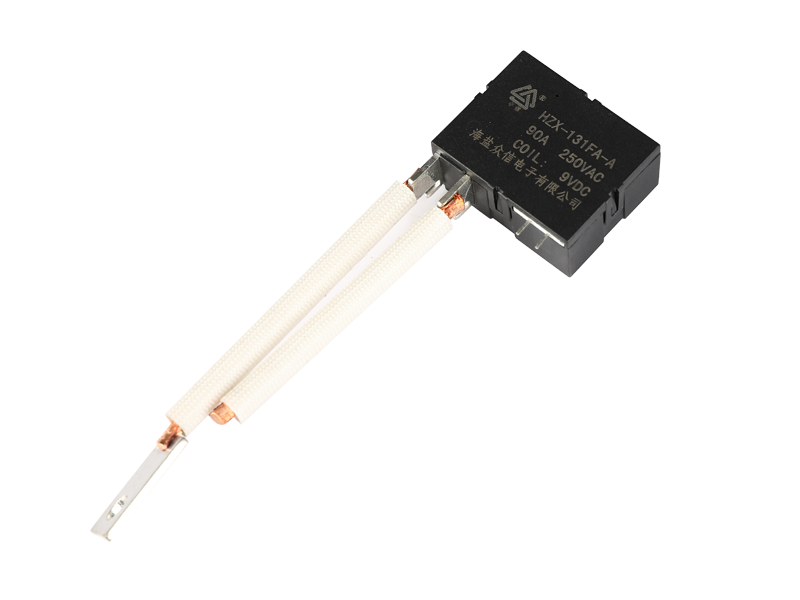

90A Switching Capability Magnetic Latching Relay

    • 90A switching capability
    • Very minimal power consumption from the coil
    • 9mm creepage distance
    • 4KV dielectrics strength coil to contact
    • In accordance with IEC62055-31:UC2
    • Outline dimensions:(36*30*16.5)mm
    • CE,CQC compliant
    • RoHS,UL compliant

Type: Magnetic Latching Relays
Theory: Electromagnetic Relay
Usage: Household Appliances Relay, General Purpose
Protective Characteristics: Sealed Relay
Action Principle: Electromagnetic Type
Protect Feature: Sealed
Contact Load: Low Power/Intermediate Power
Trademark: Zhongxin
Origin: Zhejiang, China
Rated Load: 90A 250VAC

Contact us PDF Download
  • Contact Data
    Rated load(FLA)
    90A/250VAC
    Contact form
    1A & 1B
    Contact material
    AgSnO₂
    Initial contact resistance
    Max.switching current
    90A
    Max.switching voltage
    250VAC
    Max.switching power
    22,500VA
    Electical endurance
    1x104ops
    Mechanical endurance

    1x106ops

    Coil Powera
    Coil type Pulse duration Power consumption
    Single Min.50ms 1.5W
    Dual Min.50ms 3.0W
    Characteristics
    Insulation resistance 1,000MΩ(at 500VDC)
    Dielectric strength
    Coil to contact 4,000VAC 1 min
    Across open contact 1,800VAC 1 min
    Operate time Max.20ms
    Release time Max.20ms
    Shoock resistance functional 100m/s²(10g)
    Shoock resistance destructive 1000m/s²(100g)
    Ambient temperature -40 ~ 70℃
    Humidity 98%RH,+40℃
    Vibration resistance 10-55HZ,1.5mm(DA)
    Termination PCB
    Unit weight 40g
    Construction Dust protected
    Coil Data
    Nominal coil voltage Min.operating voltage Max.operating voltage Coil Resistance (Ω±10%)@23℃
    Single coil resistance Dual coil resistance
    6Vdc 4.5Vdc 12Vdc 24Ω 2x6Ω
    9Vdc 6.3Vdc 18Vdc 54Ω 2x27Ω
    12Vdc 8.4Vdc 24Vdc 96Ω 2x48Ω
    24Vdc 16.8Vdc 48Vdc 384Ω 2x198Ω

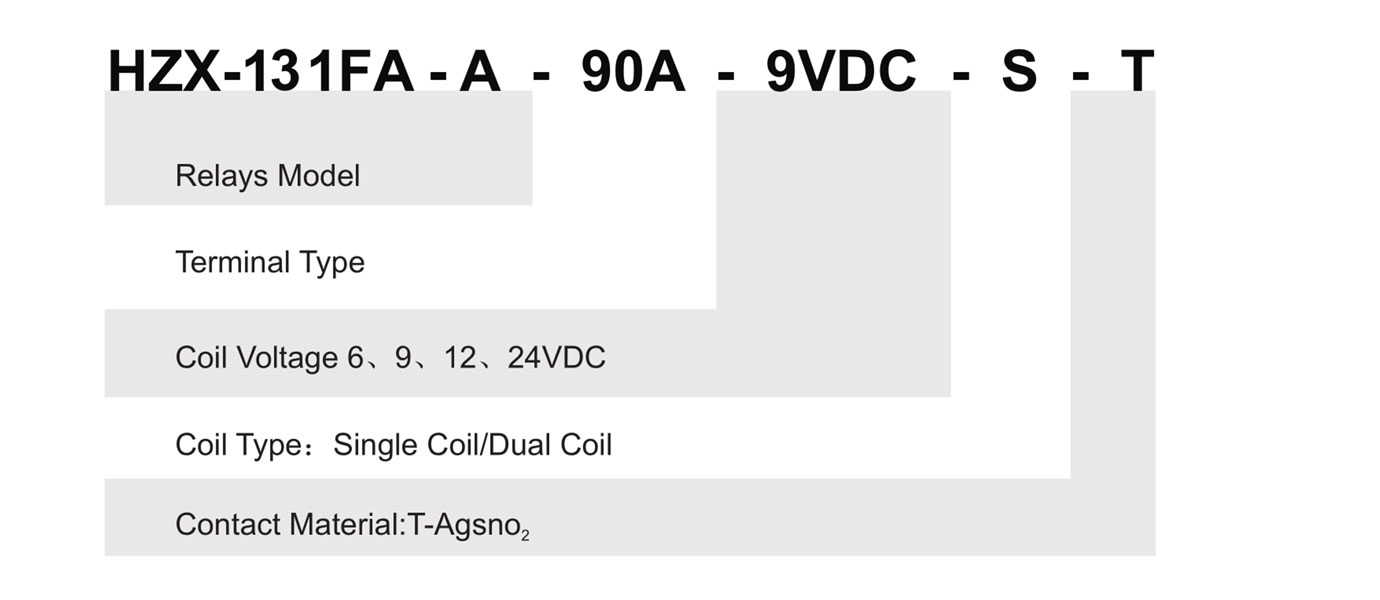

    Order Information
    Terminal Type See drawing
    Custom design
    Coil Type Single coil latching
    Dual coil latching
    Coil Voltage 6,9,12,24Vdc
    Coil Polarity Positive
    Negative

    TYPICAL APPLICATION:

    Mainly used for IC-card-prepayment based electric energy meters,Model 485 meters with the break & make function used in centralized meter reading system;
    It might also be used for combination switches of electiric power factor compensationswitch-capacitor,home appliances and automatic control devices;



    Note:when requiring other nominal voltage,special order allowed.

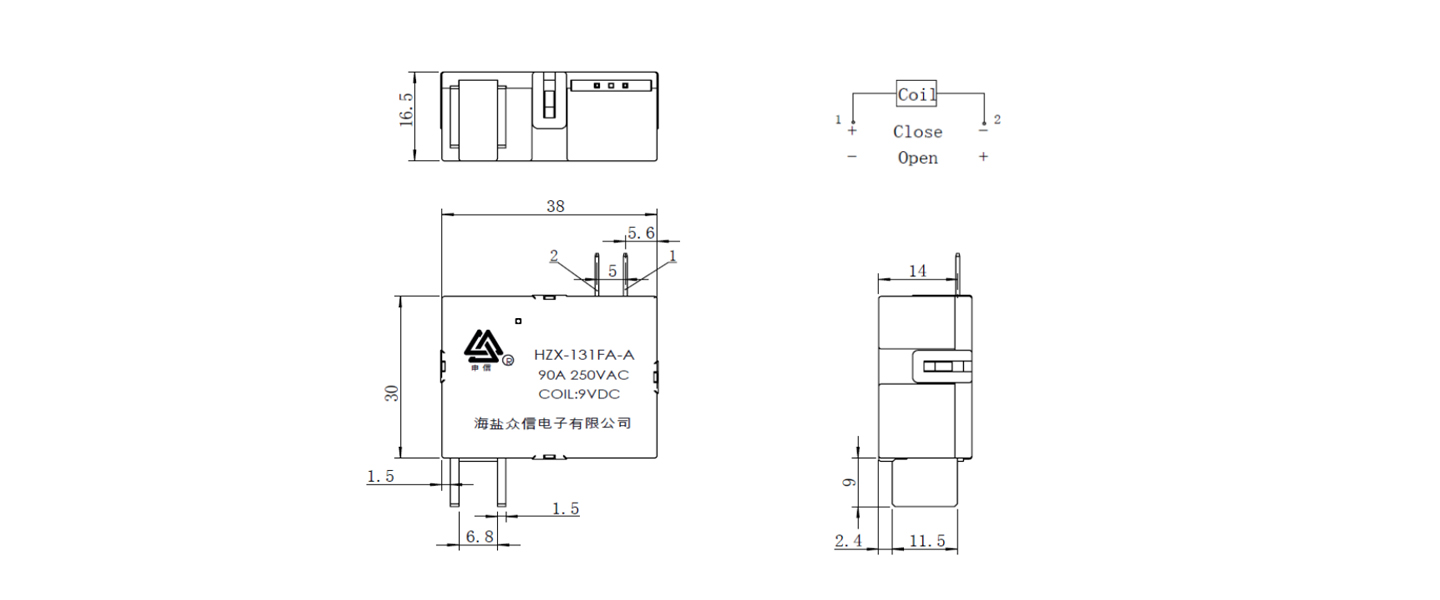

  • Vertical installation of exterior dimensions(mm)

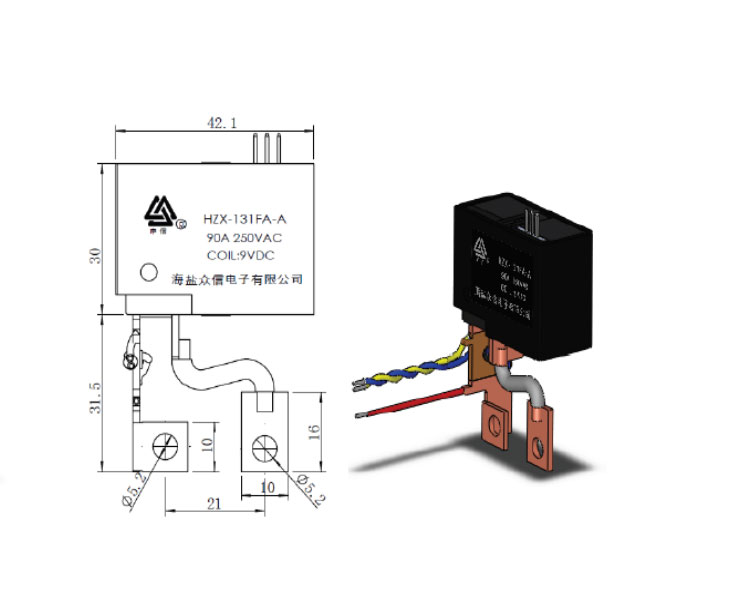

    Install exterior horizontal dimensions(mm)



    Contact A Contact B
